AO ALPS (Advanced Locking Plate System) Instrument Set Based on AO Standards for Veterinary Fracture Fixation
Product Overview
AO ALPS Set | Veterinary Instrument Set
This AO ALPS instrument set is designed for veterinary orthopedic procedures involving ALPS bone plating and screw fixation. It includes a comprehensive selection of titanium instruments, drill sleeves, drill bits, screwdrivers, plates, and both locking and cortical screws. The set is suitable for small animal surgeries, including dogs and cats.
Key Features
✔ Contains 73 pieces including AO drill sleeves, bits, screwdrivers, plates, and screws for ALPS procedures
✔ Includes both 2.0mm, 2.4mm, 2.7mm, and 3.5mm AO locking and cortical screws in multiple lengths
✔ All components are manufactured from medical-grade stainless steel or titanium for durability and safety
✔ Comes in a sterilization box made of high-performance PPSU and HPP for safe autoclaving and storage
Applications
ALPS fracture fixation
Small animal trauma repair
Orthopedic implant positioning
General bone plating surgeries
A reliable all-in-one instrument kit for ALPS-related veterinary procedures
Product Details

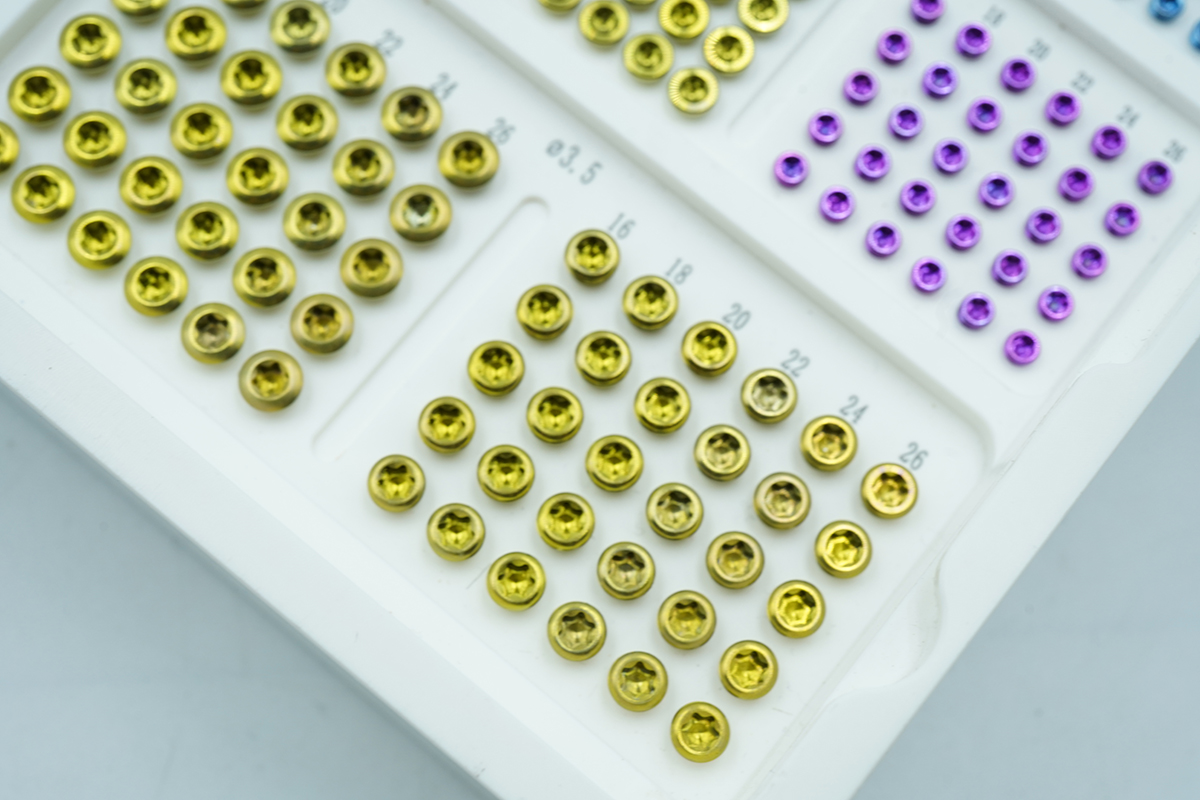

Anodized color-coded screws are organized by diameter and length for quick identification and efficient workflow.

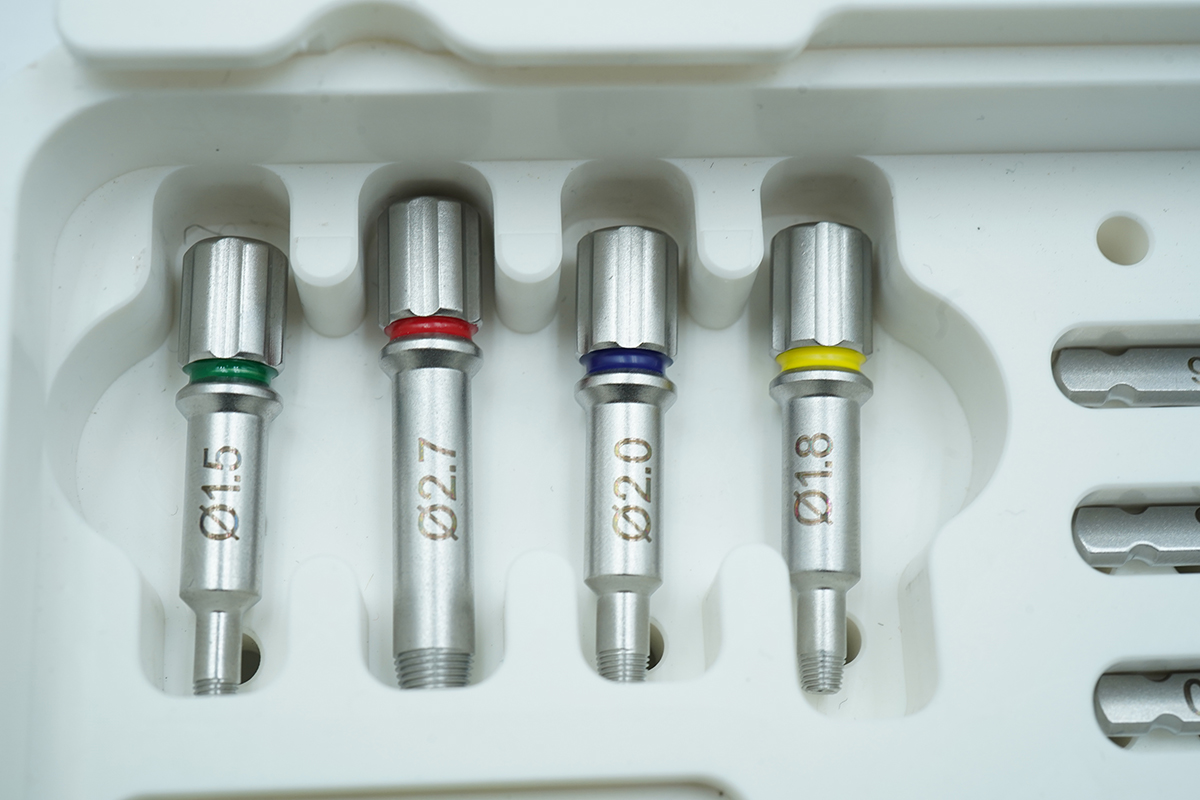

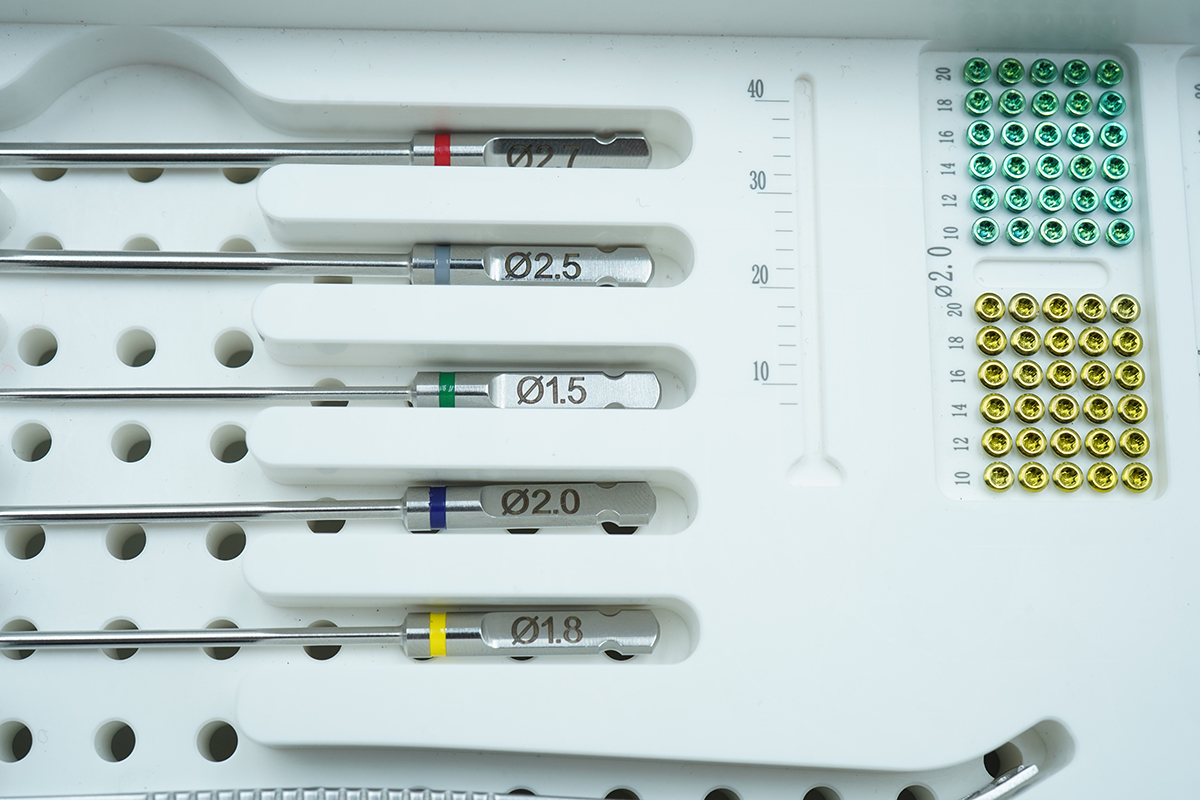

Matching sleeves and drill bits use a clear colored ring system for intuitive size pairing.

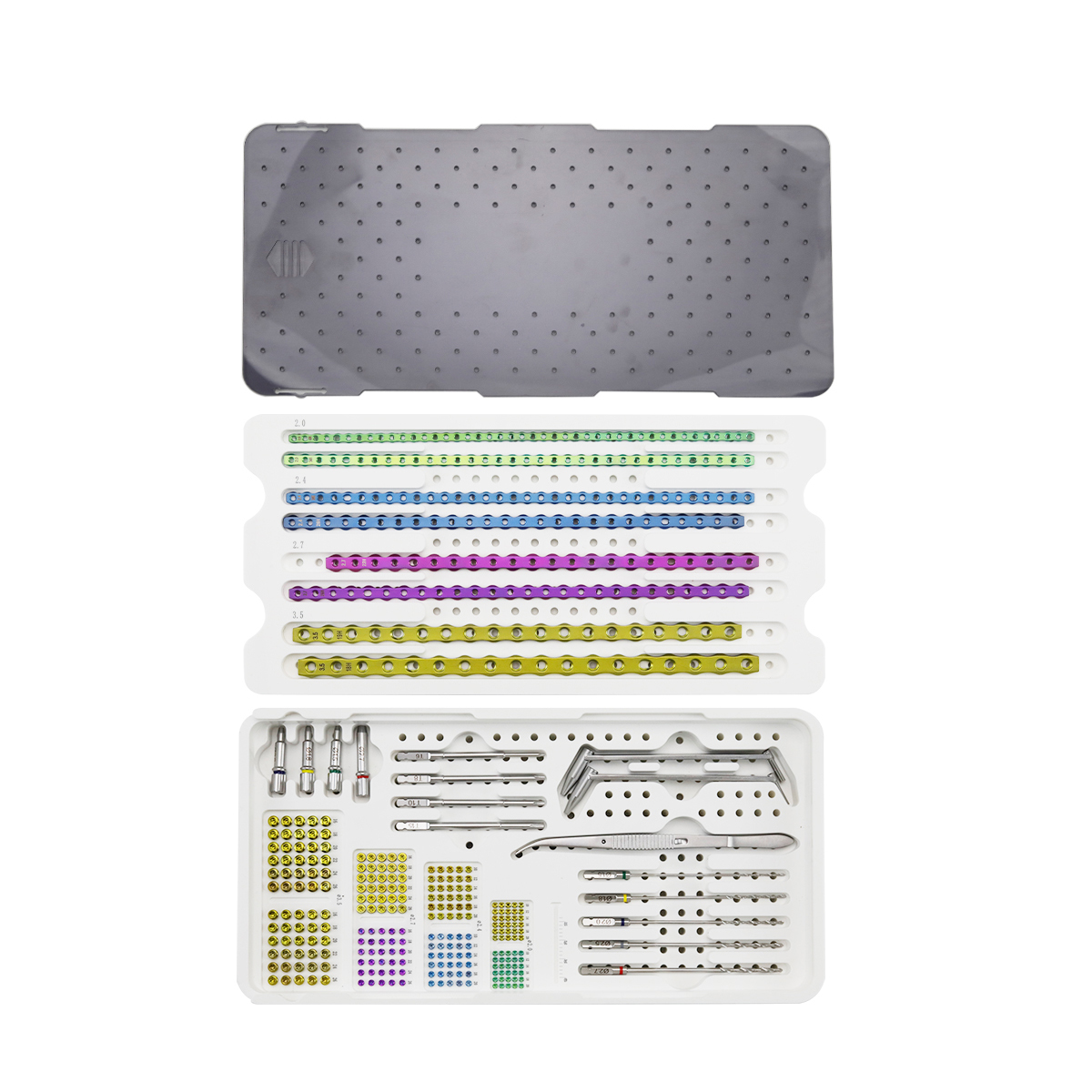

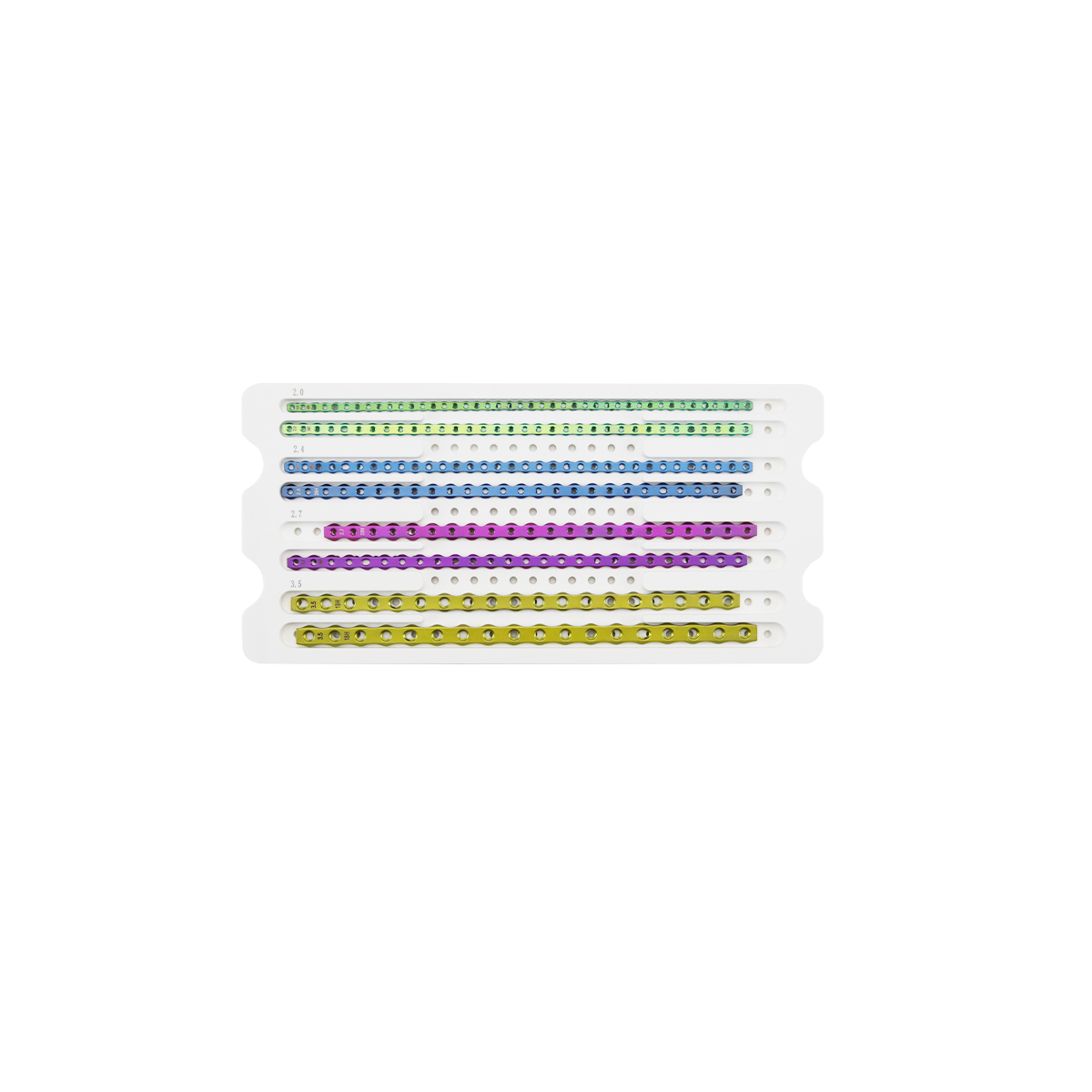

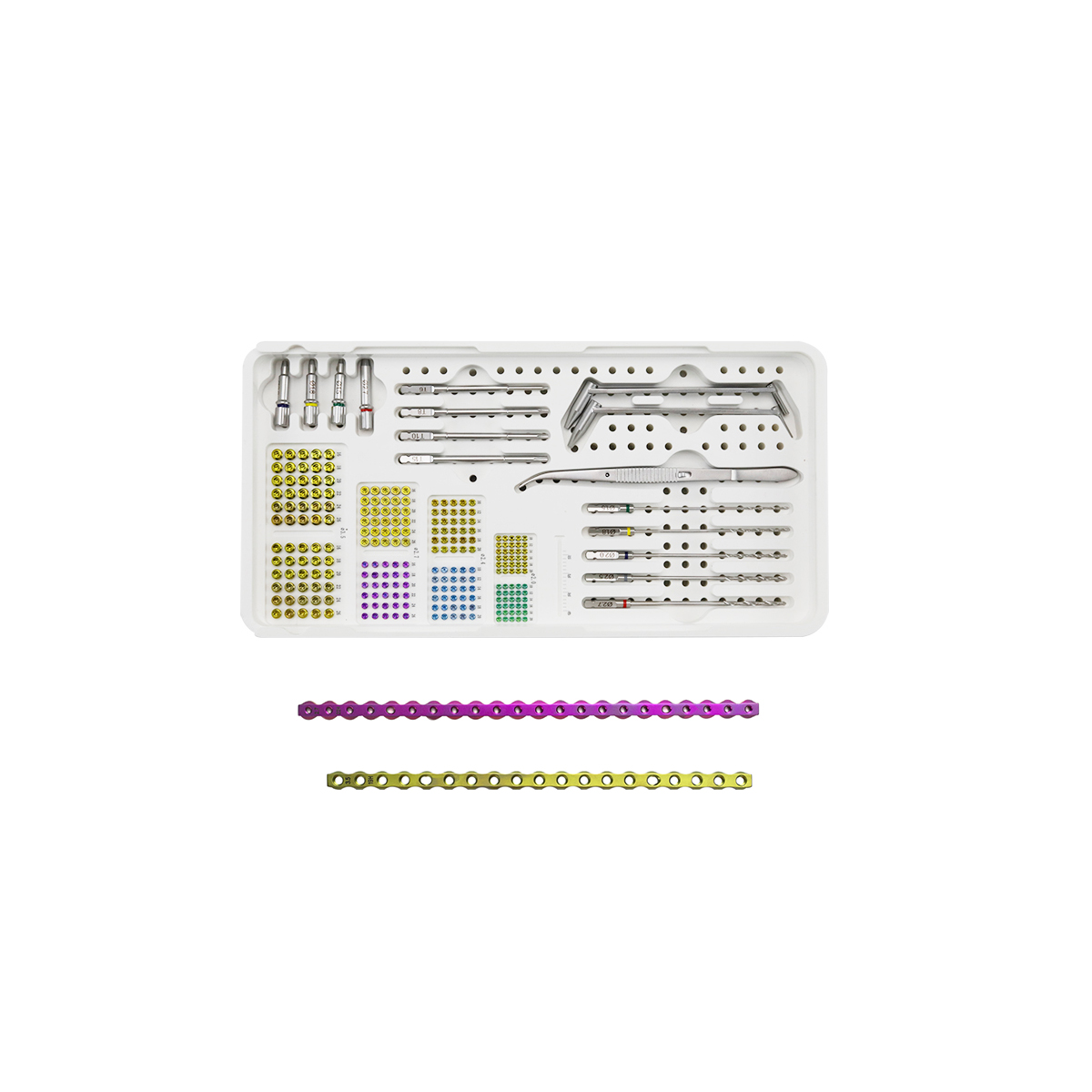

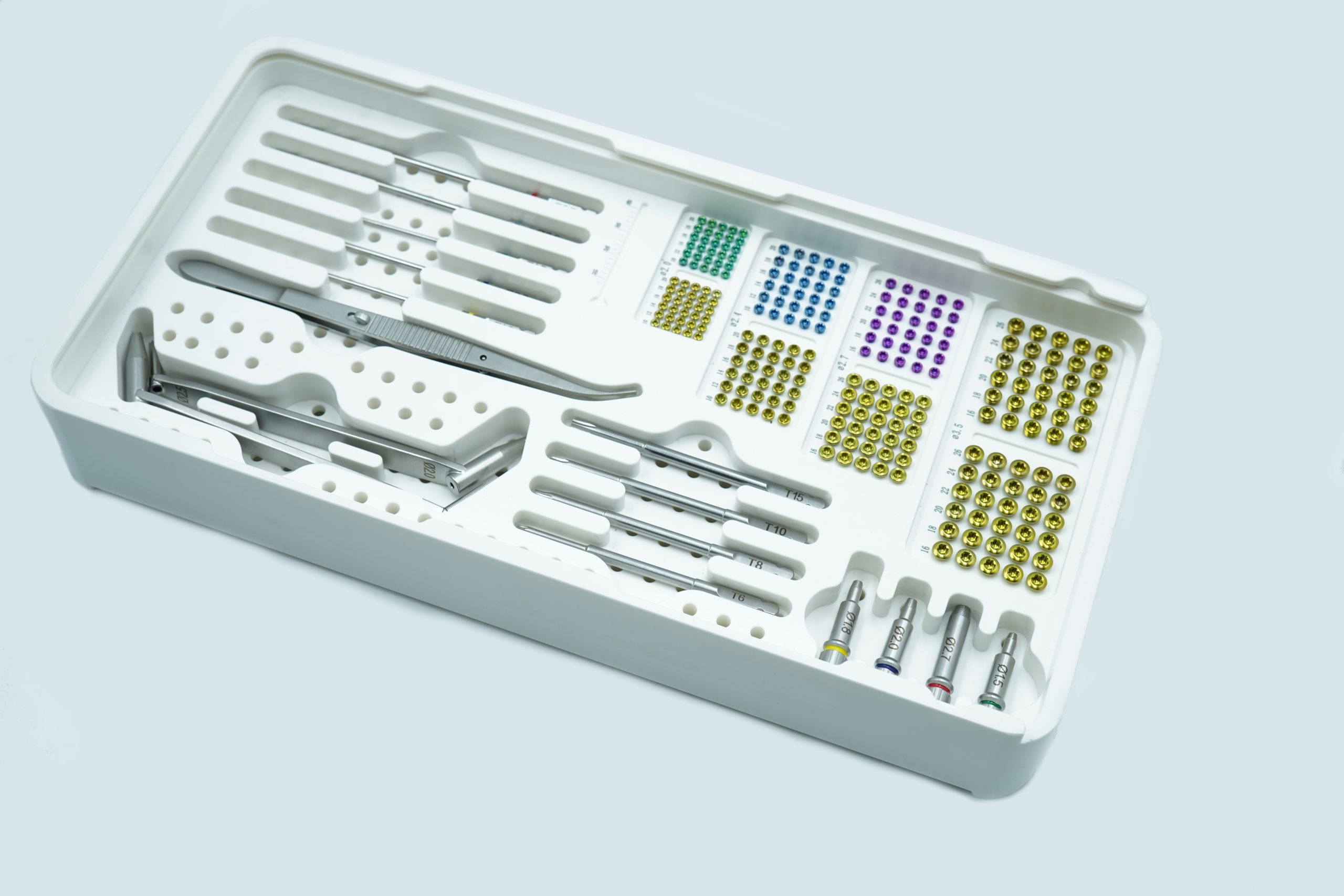

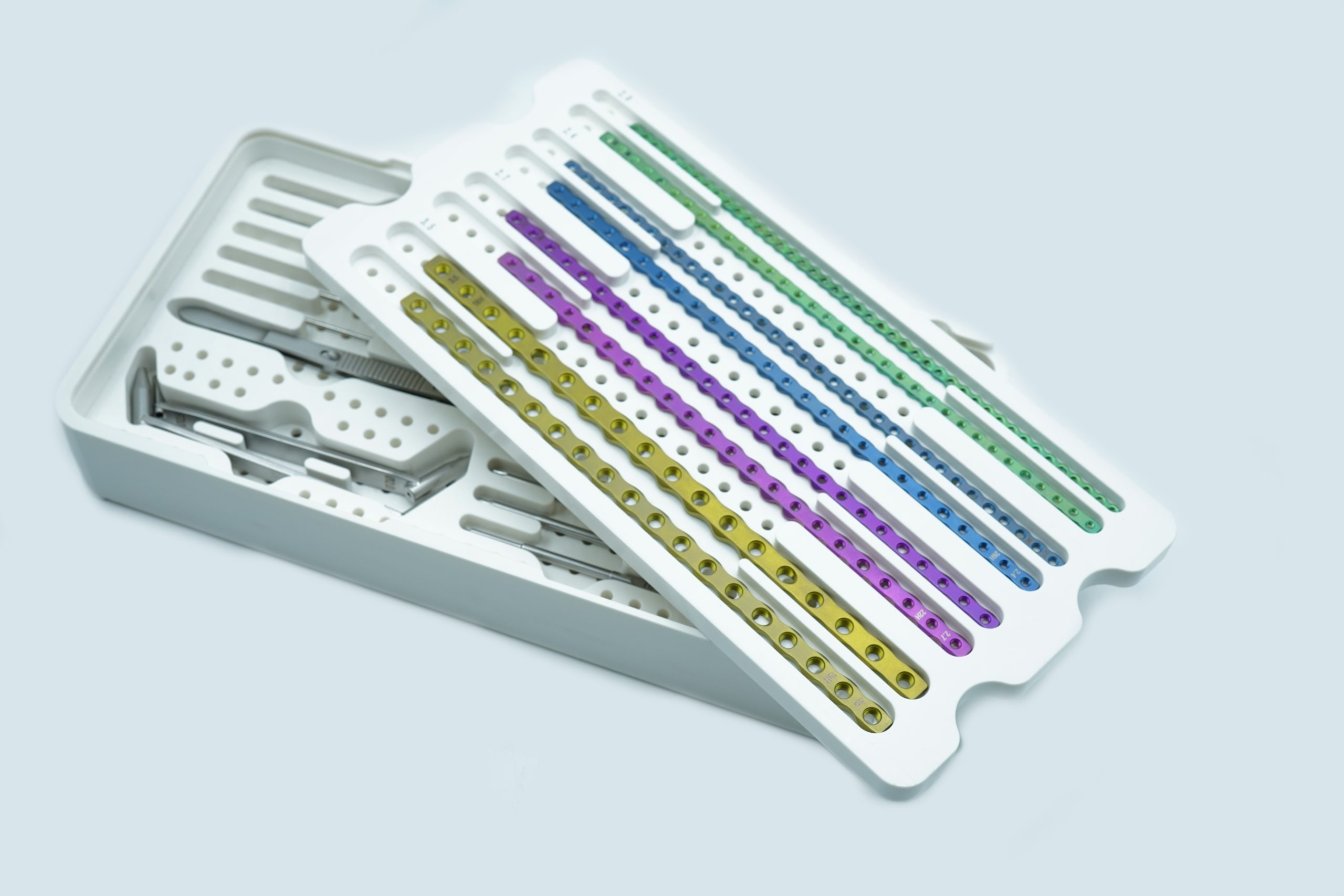

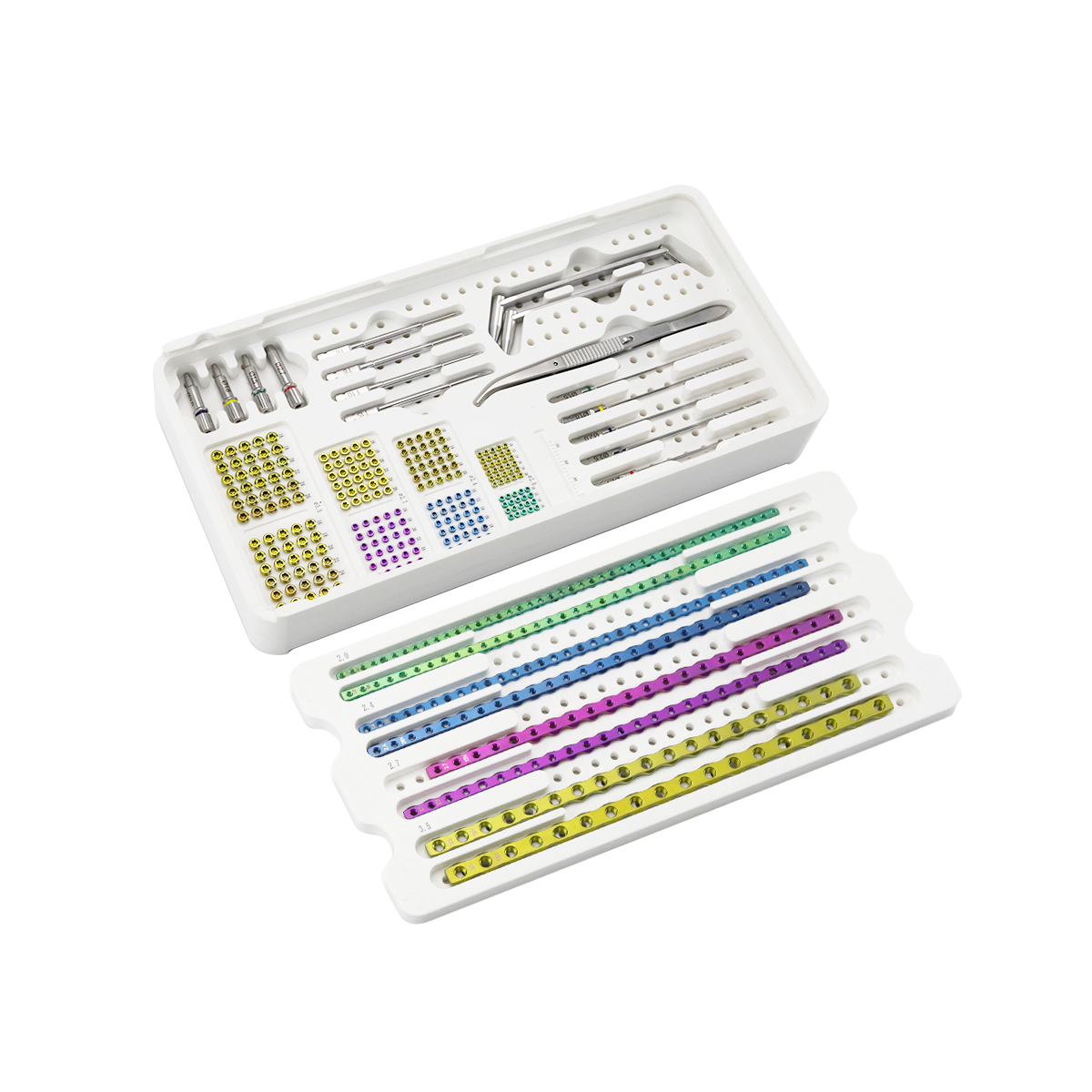

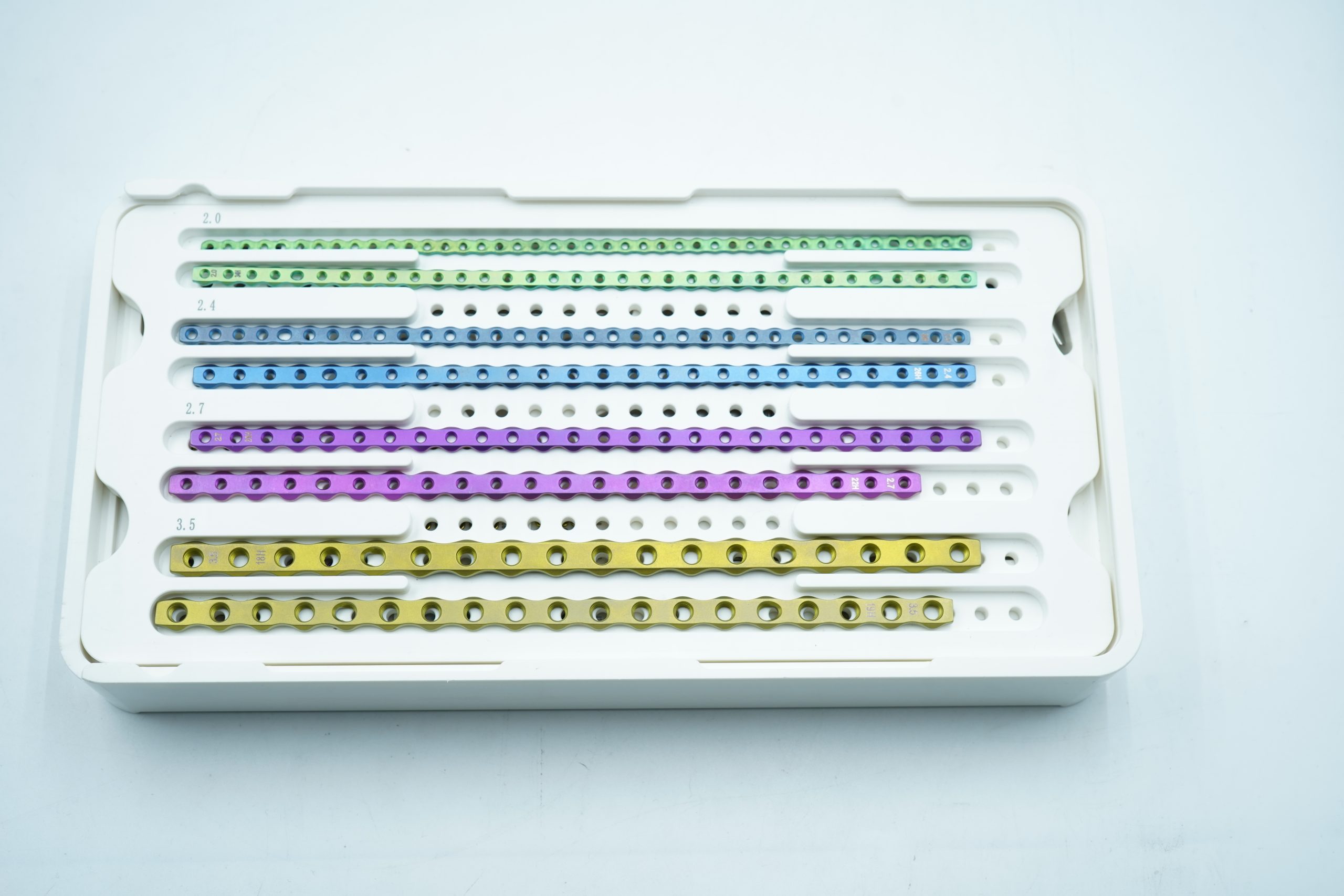

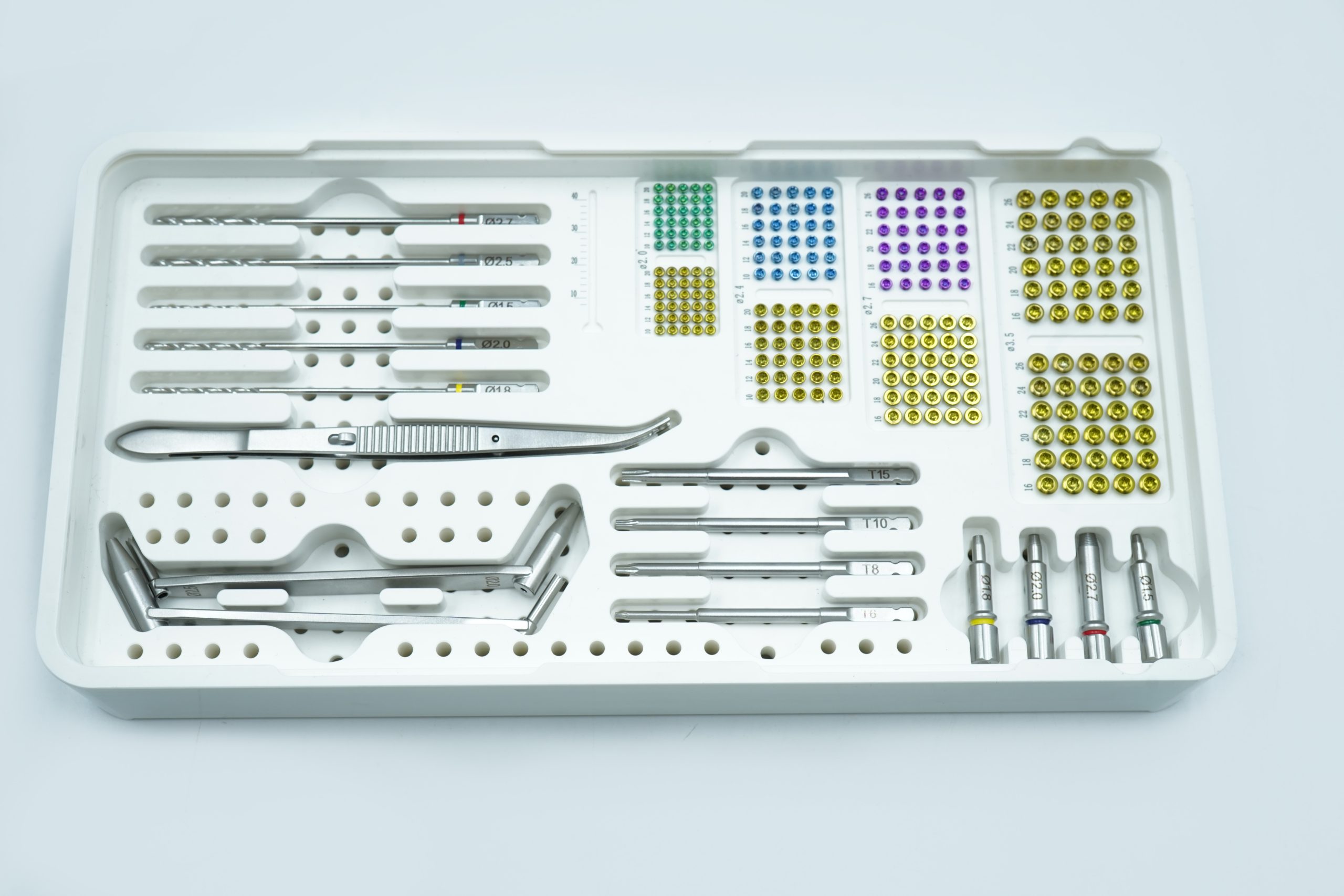

The entire set is arranged in a custom-molded tray with labeled slots to maintain order and protect instruments.

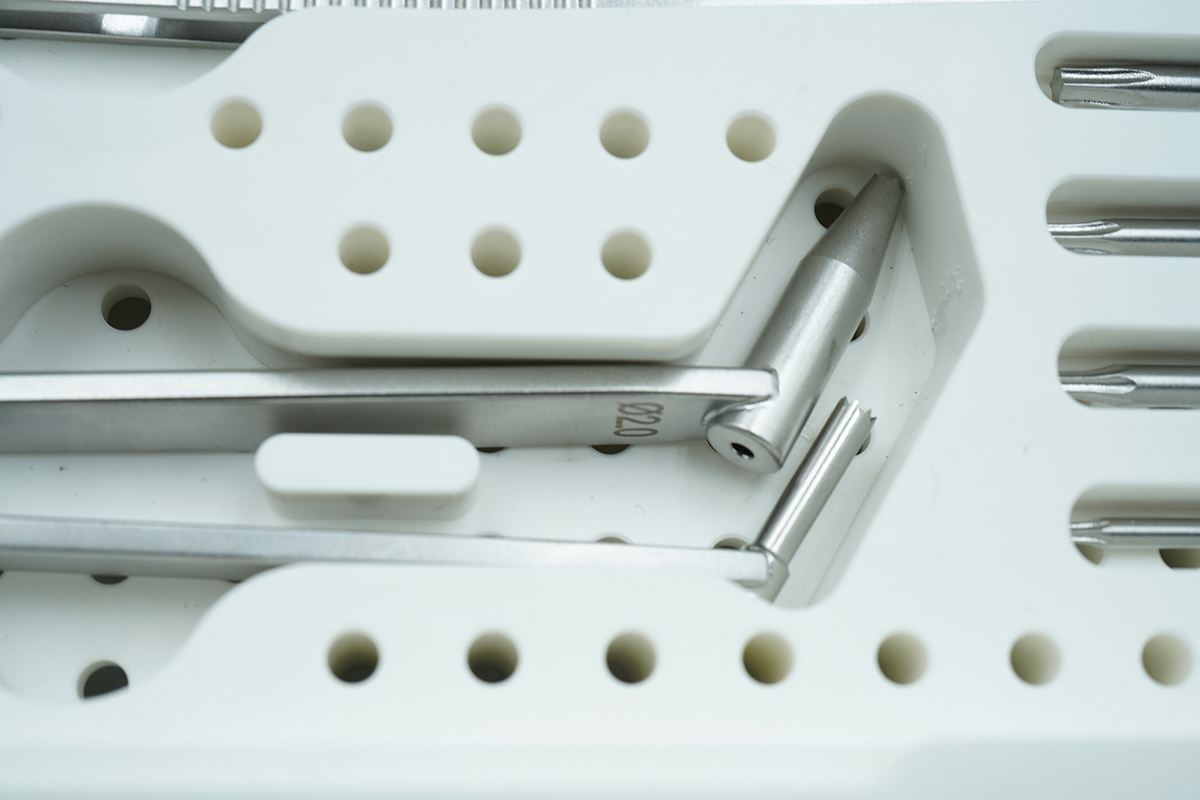

The drill sleeves are crafted from high-precision stainless steel to ensure stable and accurate drilling.
| Products | Details | |||
| AO ALPS Set （PN:CQAOALPS） |
1 | CQAOAS15SDZ | φ1.5 Locking Drill Sleeve | 1 |
| 2 | CQAOAS18SDZ | φ1.8 Locking Drill Sleeve | 1 | |
| 3 | CQAOAS20SDZ | φ2.0 Locking Drill Sleeve | 1 | |
| 4 | CQAOAS27SDZ | φ2.7 Locking Drill Sleeve | 1 | |
| 5 | CQAOAS15AZT | φ1.5 AO Drill Bit | 1 | |
| 6 | CQAOAS18AZT | φ1.8 AO Drill Bit | 1 | |
| 7 | CQAOAS20AZT | φ2.0 AO Drill Bit | 1 | |
| 8 | CQAOAS25AZT | φ2.5 AO Drill Bit | 1 | |
| 9 | CQAOAS27AZT | φ2.7 AO Drill Bit | 1 | |
| 10 | CQTYT6MB | AO T6 Screwdriver | 1 | |
| 11 | CQTYT8MB | AO T8 Screwdriver | 1 | |
| 12 | CQTYT10MB | AO T10 Screwdriver | 1 | |
| 13 | CQTYT15MB | AO T15 Screwdriver | 1 | |
| 14 | CQAOAS1518STDZ | φ1.5/φ1.8 Drill Guider | 1 | |
| 15 | CQAOAS2025STDZ | φ2.0/φ2.5 Drill Guider | 1 | |
| 16 | CQTYLDN | Screw Holder Forceps | 1 | |
| 17 | CPAO204 | 2.0 AO Locking plate 43H | 1 | |
| 18 | CPAO205 | 2.0 AO Locking plate 34H | 1 | |
| 19 | CPAO248 | 2.4 AO Locking plate34H | 1 | |
| 20 | CPAO2465 | 2.4 AO Locking plate26H | 1 | |
| 21 | CPAO278 | 2.7AO Locking plate26H | 1 | |
| 22 | CPAO279 | 2.7AO Locking plate22H | 1 | |
| 23 | CPAO3510 | 3.5AO Locking plate 19H | 1 | |
| 24 | CPAO3511 | 3.5AO Locking plate18H | 1 | |
| 25 | CSAO2010 | 2.0*10AO locking screws | 5 | |
| 26 | CSAO2012 | 2.0*12AO locking screws | 5 | |
| 27 | CSAO2014 | 2.0*14AO locking screws | 5 | |
| 28 | CSAO2016 | 2.0*16AO locking screws | 5 | |
| 29 | CSAO2018 | 2.0*18AO locking screws | 5 | |
| 30 | CSAO2020 | 2.0*20AO locking screws | 5 | |
| 31 | CSAO2410 | 2.4*10AO Locking screws | 5 | |
| 32 | CSAO2412 | 2.4*12AO Locking screws | 5 | |
| 33 | CSAO2414 | 2.4*14AO Locking screws | 5 | |
| 34 | CSAO2416 | 2.4*16AO Locking screws | 5 | |
| 35 | CSAO2418 | 2.4*18AO Locking screws | 5 | |
| 36 | CSAO2420 | 2.4*20AO Locking screws | 5 | |
| 37 | CSAO2716 | 2.7*16AO Locking screws | 5 | |
| 38 | CSAO2718 | 2.7*18AO Locking screws | 5 | |
| 39 | CSAO2720 | 2.7*20AO Locking screws | 5 | |
| 40 | CSAO2722 | 2.7*22AO Locking screws | 5 | |
| 41 | CSAO2724 | 2.7*24AO Locking screws | 5 | |
| 42 | CSAO2726 | 2.7*26AO Locking screws | 5 | |
| 43 | CSAO3516 | 3.5*16AO Locking screws | 5 | |
| 44 | CSAO3518 | 3.5*18AO Locking screws | 5 | |
| 45 | CSAO3520 | 3.5*20AO Locking screws | 5 | |
| 46 | CSAO3522 | 3.5*22AO Locking screws | 5 | |
| 47 | CSAO3524 | 3.5*24AO Locking screws | 5 | |
| 48 | CSAO3526 | 3.5*26AO Locking screws | 5 | |
| 49 | CSCF2010 | 2.0*10 Cortical screws | 5 | |
| 50 | CSCF2012 | 2.0*12 Cortical screws | 5 | |
| 51 | CSCF2014 | 2.0*14 Cortical screws | 5 | |
| 52 | CSCF2016 | 2.0*16 Cortical screws | 5 | |
| 53 | CSCF2018 | 2.0*18 Cortical screws | 5 | |
| 54 | CSCF2020 | 2.0*20 Cortical screws | 5 | |
| 55 | CSCF2410 | 2.4 *10Cortical Screws | 5 | |
| 56 | CSCF2412 | 2.4 *12Cortical Screws | 5 | |
| 57 | CSCF2414 | 2.4 *14Cortical Screws | 5 | |
| 58 | CSCF2416 | 2.4 *16Cortical Screws | 5 | |
| 59 | CSCF2418 | 2.4 *18Cortical Screws | 5 | |
| 60 | CSCF2420 | 2.4 *20Cortical Screws | 5 | |
| 61 | CSCF2716 | 2.7*16 Cortical Screws | 5 | |
| 62 | CSCF2718 | 2.7*18 Cortical Screws | 5 | |
| 63 | CSCF2720 | 2.7*20 Cortical Screws | 5 | |
| 64 | CSCF2722 | 2.7*22 Cortical Screws | 5 | |
| 65 | CSCF2724 | 2.7*24 Cortical Screws | 5 | |
| 66 | CSCF2726 | 2.7*26 Cortical Screws | 5 | |
| 67 | CSCF3516 | 3.5*16 Cortical screws | 5 | |
| 68 | CSCF3518 | 3.5*18 Cortical screws | 5 | |
| 69 | CSCF3520 | 3.5*20 Cortical screws | 5 | |
| 70 | CSCF3522 | 3.5*22 Cortical screws | 5 | |
| 71 | CSCF3524 | 3.5*24 Cortical screws | 5 | |
| 72 | CSCF3526 | 3.5*26 Cortical screws | 5 | |
| 73 | CQAOASMJH | HPP+PPSU Sterilization Box | 1 | |
Product Photograph
