AO ALPS (Advanced Locking Plate System) Instrument Set for Veterinary Bone Fracture Fixation
Product Overview
AO ALPS Set | Veterinary Titanium Bone Plate and Screws

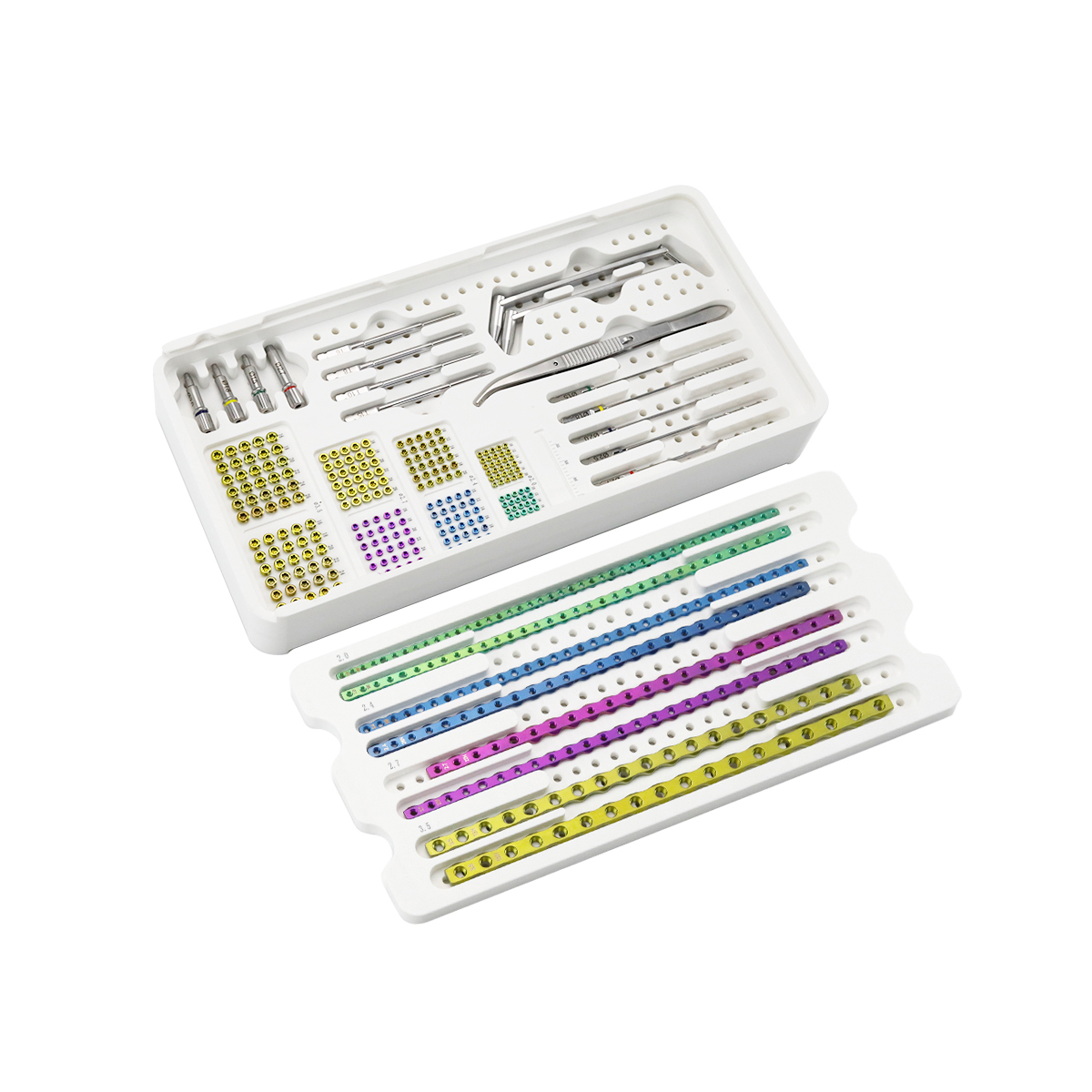

This AO ALPS Set is a comprehensive internal fixation solution for veterinary orthopedic surgeries. It includes titanium AO locking plates, locking screws, cortical screws, drill sleeves, and guided instruments, all designed for optimal compatibility and surgical precision. Suitable for small to large animals.
Key Features
✔ Full series of titanium AO locking plates in 2.0mm to 3.5mm, suitable for various anatomical regions
✔ Includes over 60 types of screws (locking and cortical) ranging from 2.0mm to 3.5mm in diameter and up to 26mm in length
✔ Equipped with AO standard drill sleeves, screwdrivers (T6/T8/T10/T15), and forceps for precise alignment and stable fixation
✔ Packaged in a durable HPP+PPSU sterilization box for safe autoclave and transportation use
Applications
Distal radius fractures in small animals
Humeral shaft or condyle fixation in dogs
Tibial and femoral fractures in cats and medium-sized dogs
Supracondylar fixation for joint stabilization
The set supports a wide range of veterinary trauma and orthopedic surgeries with high surgical adaptability
Product Details

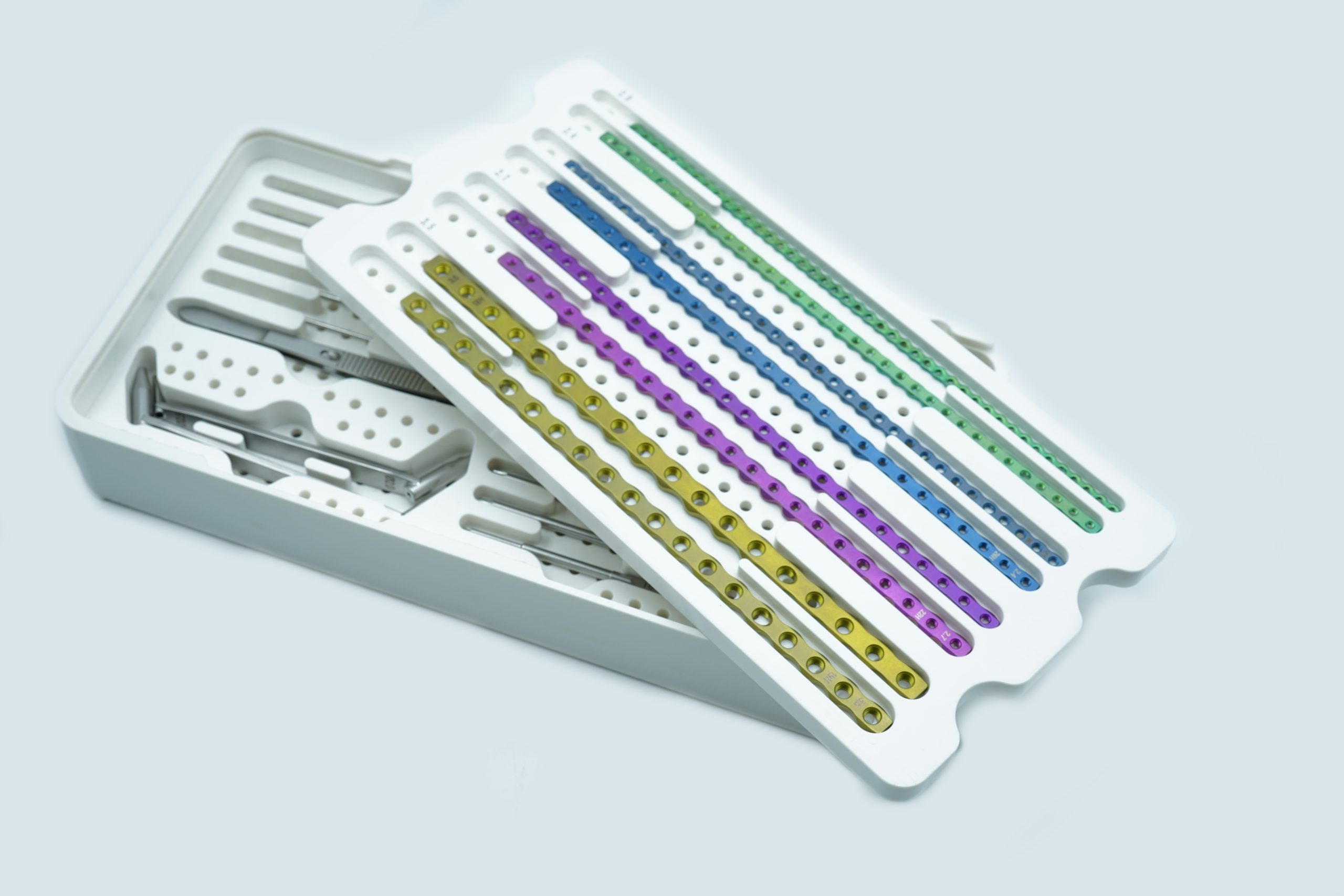

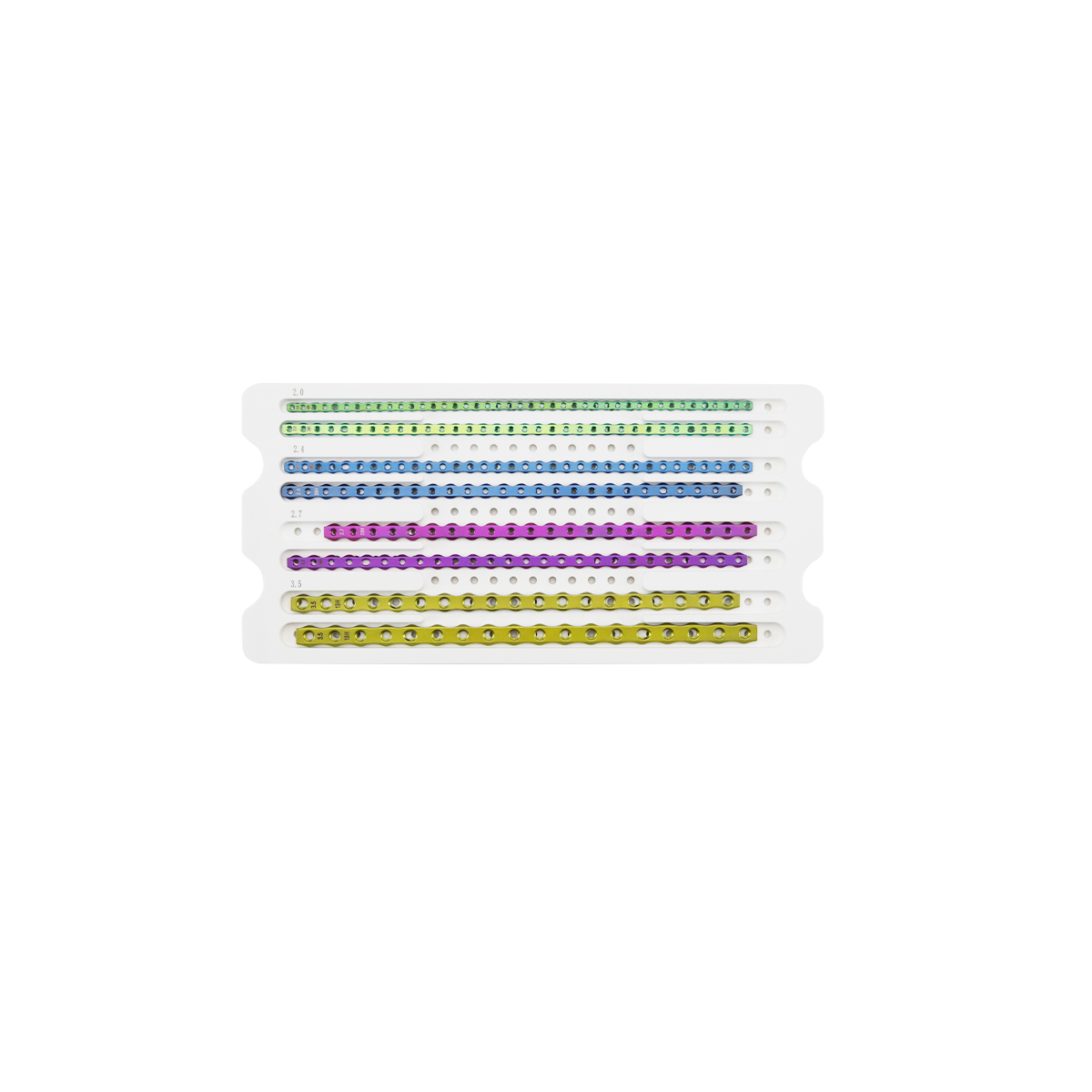

Available in 2.0mm, 2.4mm, 2.7mm, and 3.5mm locking plates to accommodate fracture fixation needs for small, medium, and large animals, ensuring surgical flexibility.

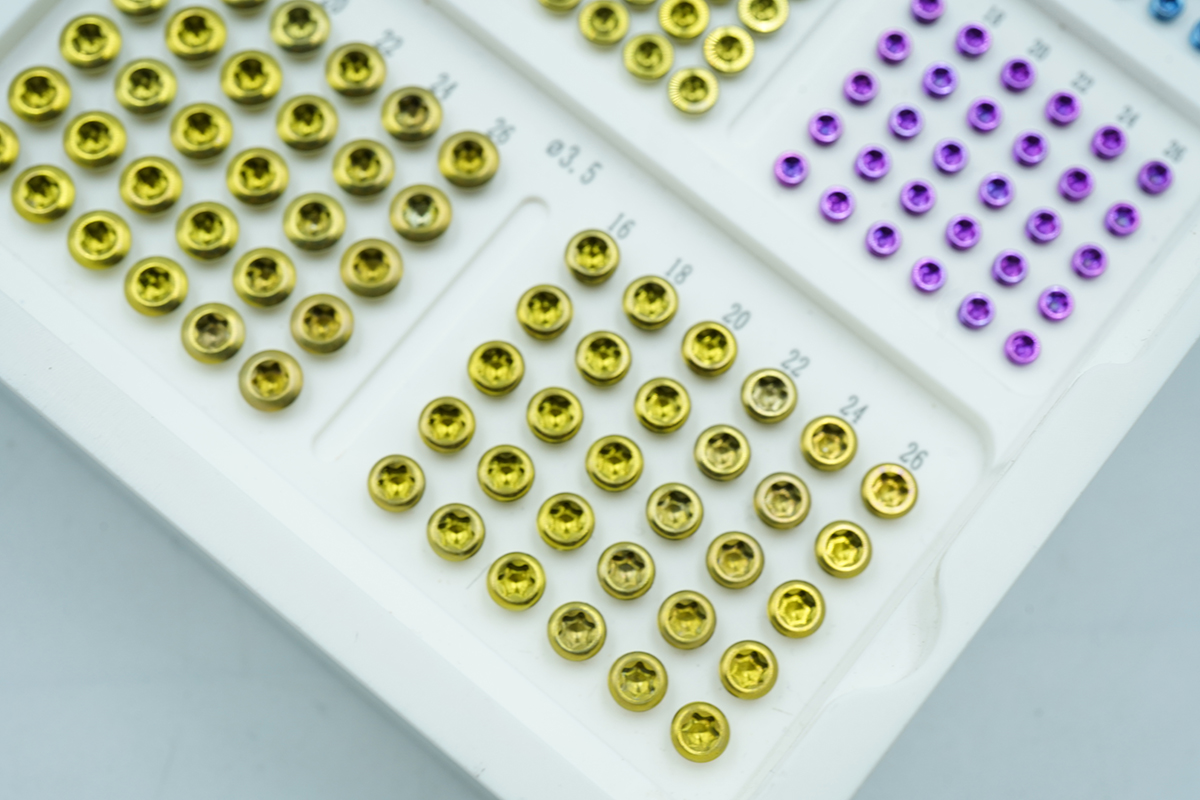

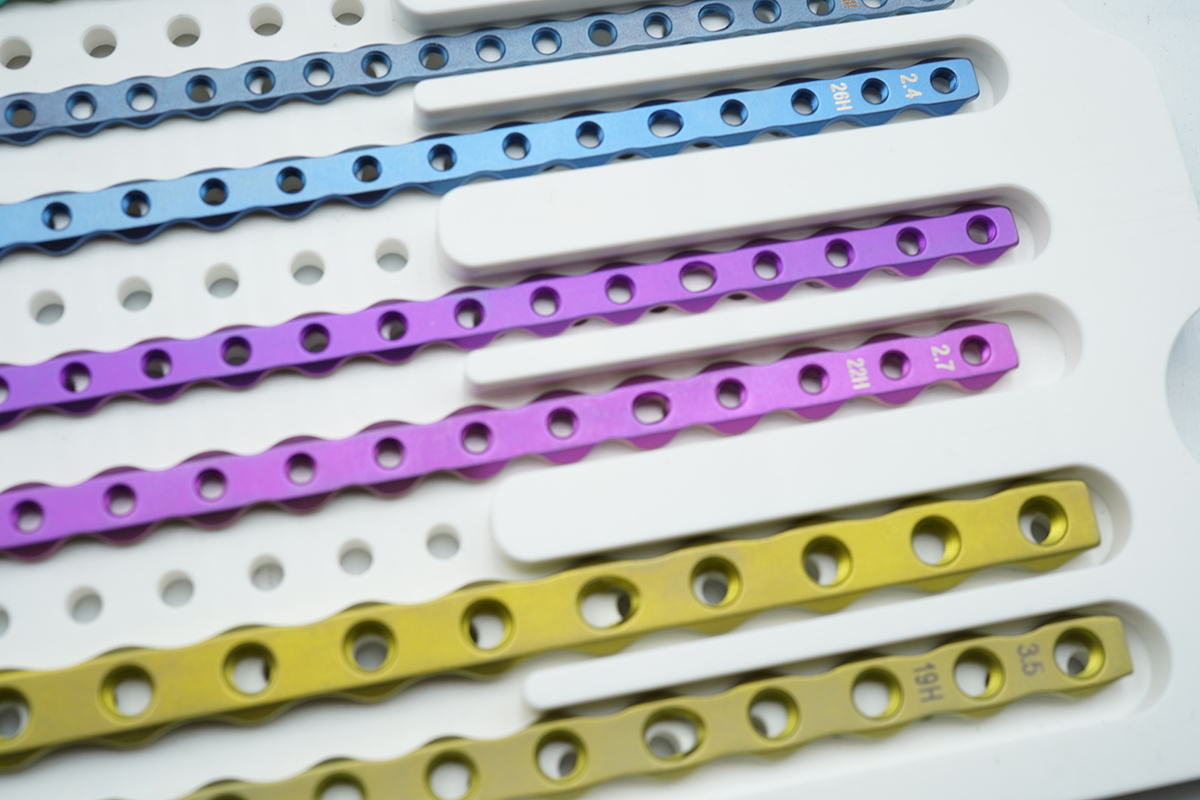

Each screw is anodized in a distinct color by size and length, improving intraoperative identification and minimizing the risk of mismatch.

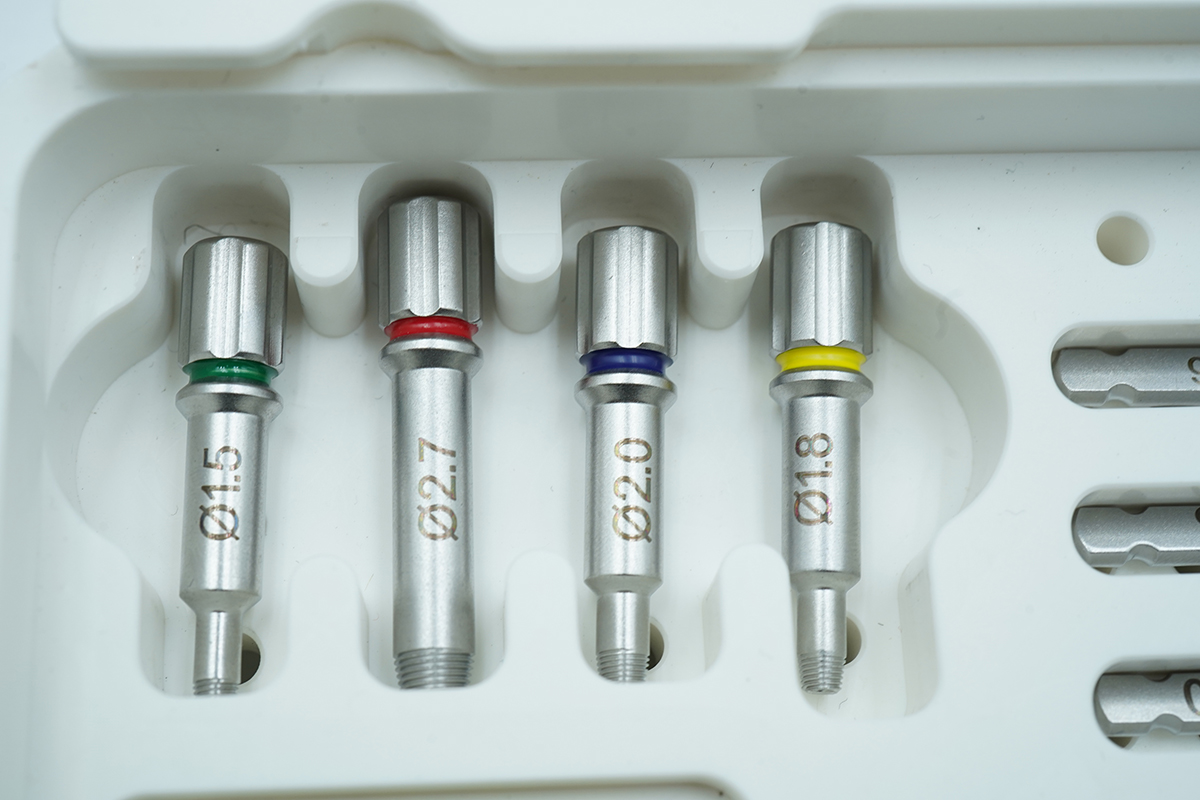

Includes φ1.5, φ1.8, φ2.0, φ2.7 sleeves to match different locking holes, ensuring precise reduction and optimal fixation outcomes.

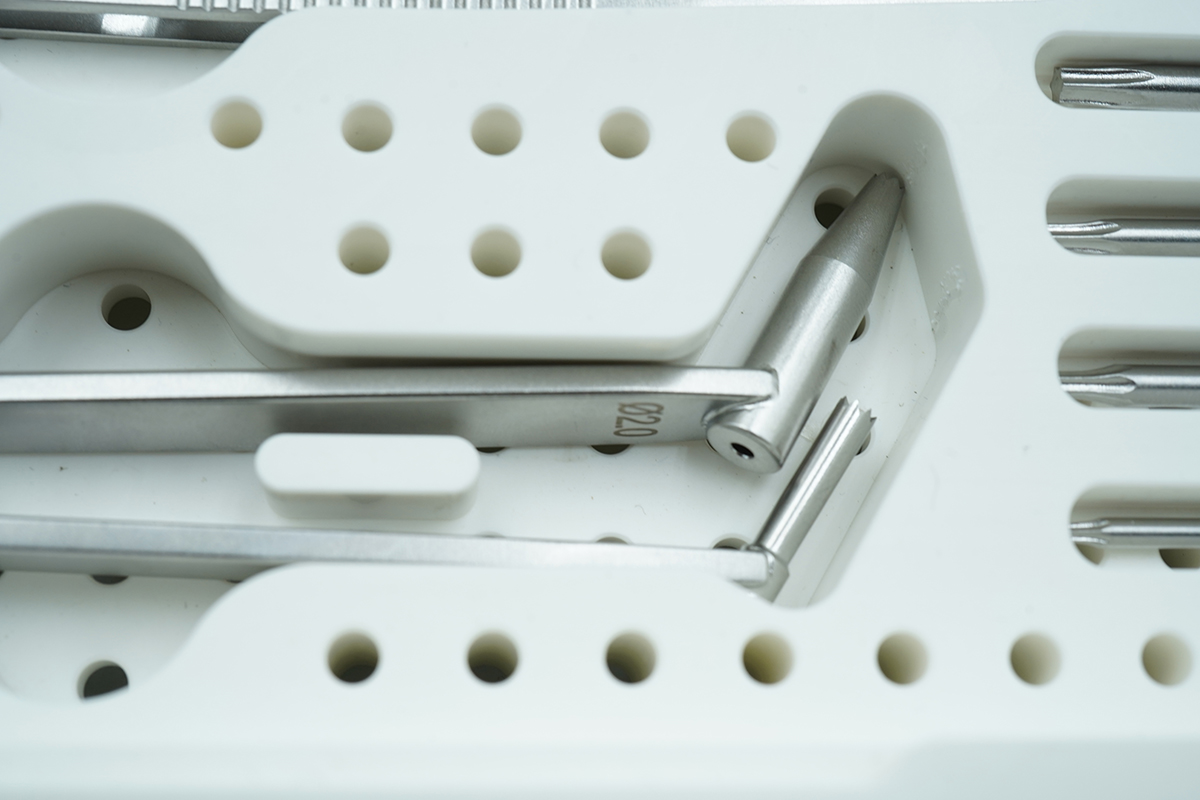

Equipped with clamp forceps and drill guides to assist in accurate positioning, simplifying surgical workflow and improving efficiency.
| Products | Details | |||
| AO ALPS Set （PN:CQAOALPS） |
1 | CQAOAS15SDZ | φ1.5 Locking Drill Sleeve | 1 |
| 2 | CQAOAS18SDZ | φ1.8 Locking Drill Sleeve | 1 | |
| 3 | CQAOAS20SDZ | φ2.0 Locking Drill Sleeve | 1 | |
| 4 | CQAOAS27SDZ | φ2.7 Locking Drill Sleeve | 1 | |
| 5 | CQAOAS15AZT | φ1.5 AO Drill Bit | 1 | |
| 6 | CQAOAS18AZT | φ1.8 AO Drill Bit | 1 | |
| 7 | CQAOAS20AZT | φ2.0 AO Drill Bit | 1 | |
| 8 | CQAOAS25AZT | φ2.5 AO Drill Bit | 1 | |
| 9 | CQAOAS27AZT | φ2.7 AO Drill Bit | 1 | |
| 10 | CQTYT6MB | AO T6 Screwdriver | 1 | |
| 11 | CQTYT8MB | AO T8 Screwdriver | 1 | |
| 12 | CQTYT10MB | AO T10 Screwdriver | 1 | |
| 13 | CQTYT15MB | AO T15 Screwdriver | 1 | |
| 14 | CQAOAS1518STDZ | φ1.5/φ1.8 Drill Guider | 1 | |
| 15 | CQAOAS2025STDZ | φ2.0/φ2.5 Drill Guider | 1 | |
| 16 | CQTYLDN | Screw Holder Forceps | 1 | |
| 17 | CPAO204 | 2.0 AO Locking plate 43H | 1 | |
| 18 | CPAO205 | 2.0 AO Locking plate 34H | 1 | |
| 19 | CPAO248 | 2.4 AO Locking plate34H | 1 | |
| 20 | CPAO2465 | 2.4 AO Locking plate26H | 1 | |
| 21 | CPAO278 | 2.7AO Locking plate26H | 1 | |
| 22 | CPAO279 | 2.7AO Locking plate22H | 1 | |
| 23 | CPAO3510 | 3.5AO Locking plate 19H | 1 | |
| 24 | CPAO3511 | 3.5AO Locking plate18H | 1 | |
| 25 | CSAO2010 | 2.0 *10AO locking screws | 5 | |
| 26 | CSAO2012 | 2.0 *12AO locking screws | 5 | |
| 27 | CSAO2014 | 2.0 *14AO locking screws | 5 | |
| 28 | CSAO2016 | 2.0 *16AO locking screws | 5 | |
| 29 | CSAO2018 | 2.0 *18AO locking screws | 5 | |
| 30 | CSAO2020 | 2.0 *20AO locking screws | 5 | |
| 31 | CSAO2410 | 2.4 *10AO Locking screws | 5 | |
| 32 | CSAO2412 | 2.4 *12AO Locking screws | 5 | |
| 33 | CSAO2414 | 2.4 *14AO Locking screws | 5 | |
| 34 | CSAO2416 | 2.4 *16AO Locking screws | 5 | |
| 35 | CSAO2418 | 2.4 *18AO Locking screws | 5 | |
| 36 | CSAO2420 | 2.4 *20AO Locking screws | 5 | |
| 37 | CSAO2716 | 2.7 *16AO Locking screws | 5 | |
| 38 | CSAO2718 | 2.7 *18AO Locking screws | 5 | |
| 39 | CSAO2720 | 2.7 *20AO Locking screws | 5 | |
| 40 | CSAO2722 | 2.7 *22AO Locking screws | 5 | |
| 41 | CSAO2724 | 2.7 *24AO Locking screws | 5 | |
| 42 | CSAO2726 | 2.7 *26AO Locking screws | 5 | |
| 43 | CSAO3516 | 3.5 *16AO Locking screws | 5 | |
| 44 | CSAO3518 | 3.5 *18AO Locking screws | 5 | |
| 45 | CSAO3520 | 3.5 *20AO Locking screws | 5 | |
| 46 | CSAO3522 | 3.5 *22AO Locking screws | 5 | |
| 47 | CSAO3524 | 3.5 *24AO Locking screws | 5 | |
| 48 | CSAO3526 | 3.5 *26AO Locking screws | 5 | |
| 49 | CSCF2010 | 2.0*10 Cortical screws | 5 | |
| 50 | CSCF2012 | 2.0*12 Cortical screws | 5 | |
| 51 | CSCF2014 | 2.0*14 Cortical screws | 5 | |
| 52 | CSCF2016 | 2.0*16 Cortical screws | 5 | |
| 53 | CSCF2018 | 2.0*18 Cortical screws | 5 | |
| 54 | CSCF2020 | 2.0*20 Cortical screws | 5 | |
| 55 | CSCF2410 | 2.4 *10Cortical Screws | 5 | |
| 56 | CSCF2412 | 2.4 *12Cortical Screws | 5 | |
| 57 | CSCF2414 | 2.4 *14Cortical Screws | 5 | |
| 58 | CSCF2416 | 2.4 *16Cortical Screws | 5 | |
| 59 | CSCF2418 | 2.4 *18Cortical Screws | 5 | |
| 60 | CSCF2420 | 2.4 *20Cortical Screws | 5 | |
| 61 | CSCF2716 | 2.7*16 Cortical Screws | 5 | |
| 62 | CSCF2718 | 2.7*18 Cortical Screws | 5 | |
| 63 | CSCF2720 | 2.7*20 Cortical Screws | 5 | |
| 64 | CSCF2722 | 2.7*22 Cortical Screws | 5 | |
| 65 | CSCF2724 | 2.7*24 Cortical Screws | 5 | |
| 66 | CSCF2726 | 2.7*26 Cortical Screws | 5 | |
| 67 | CSCF3516 | 3.5*16 Cortical screws | 5 | |
| 68 | CSCF3518 | 3.5*18 Cortical screws | 5 | |
| 69 | CSCF3520 | 3.5*20 Cortical screws | 5 | |
| 70 | CSCF3522 | 3.5*22 Cortical screws | 5 | |
| 71 | CSCF3524 | 3.5*24 Cortical screws | 5 | |
| 72 | CSCF3526 | 3.5*26 Cortical screws | 5 | |
| 73 | CQAOASMJH | HPP+PPSU Sterilization Box | 1 | |

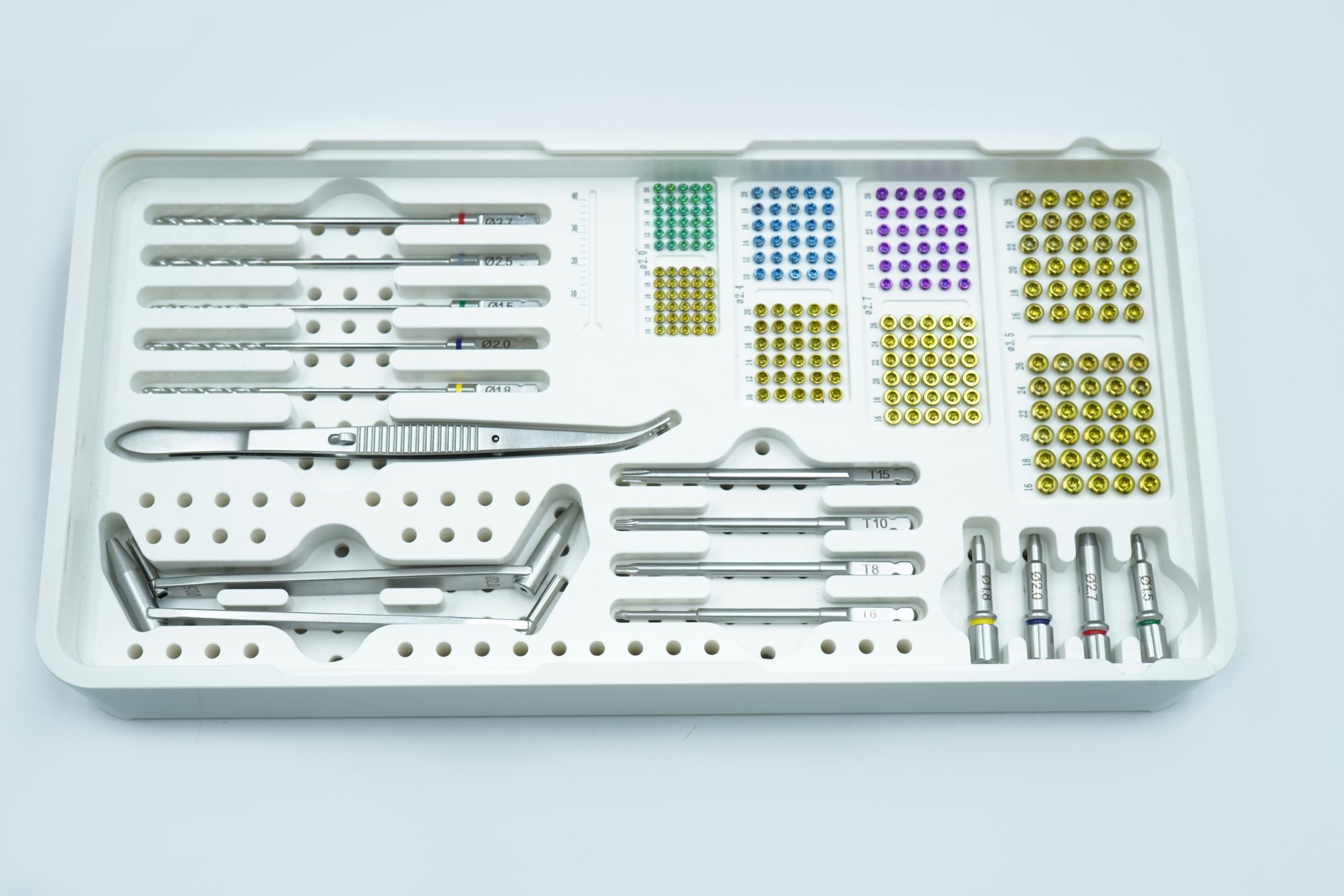

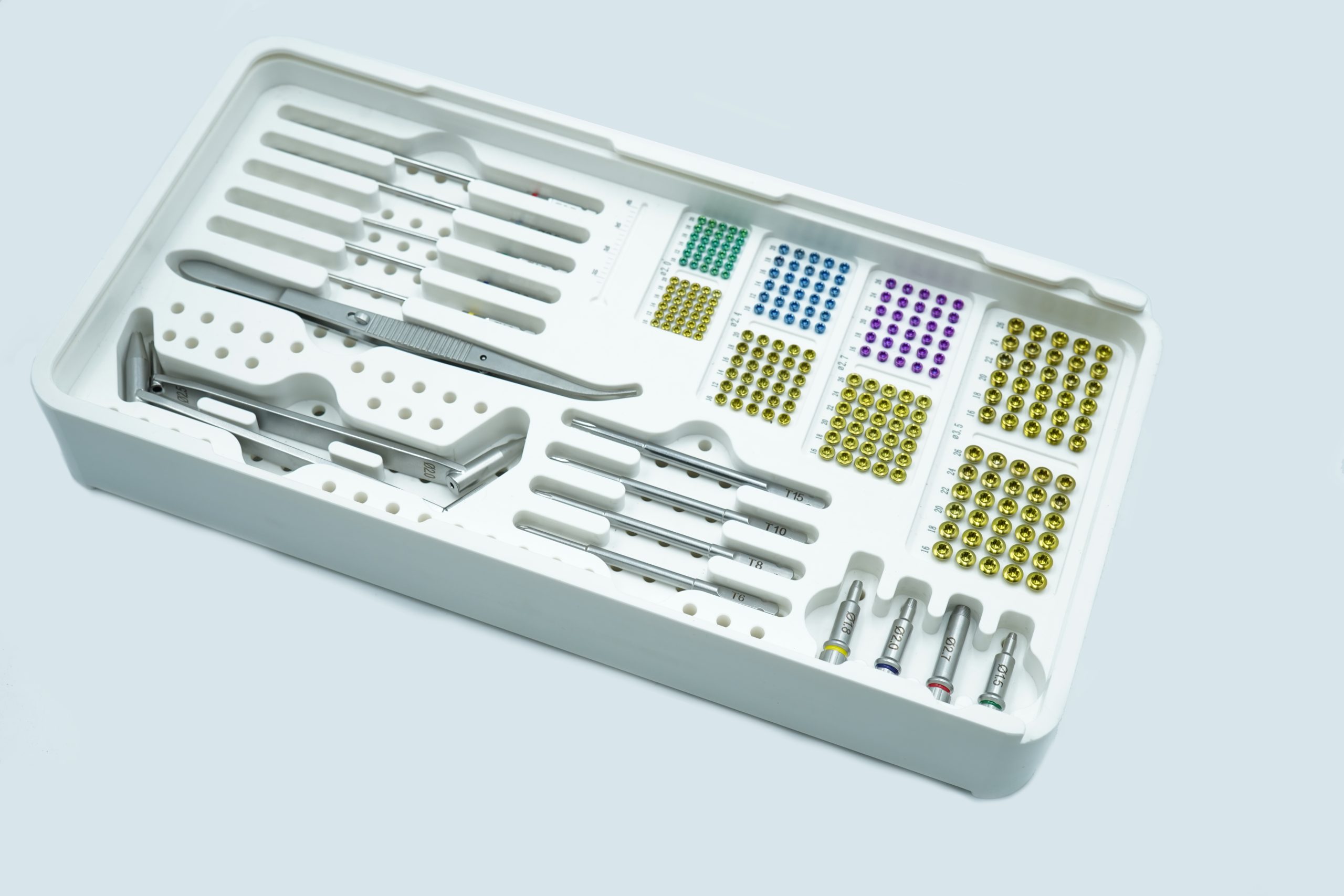

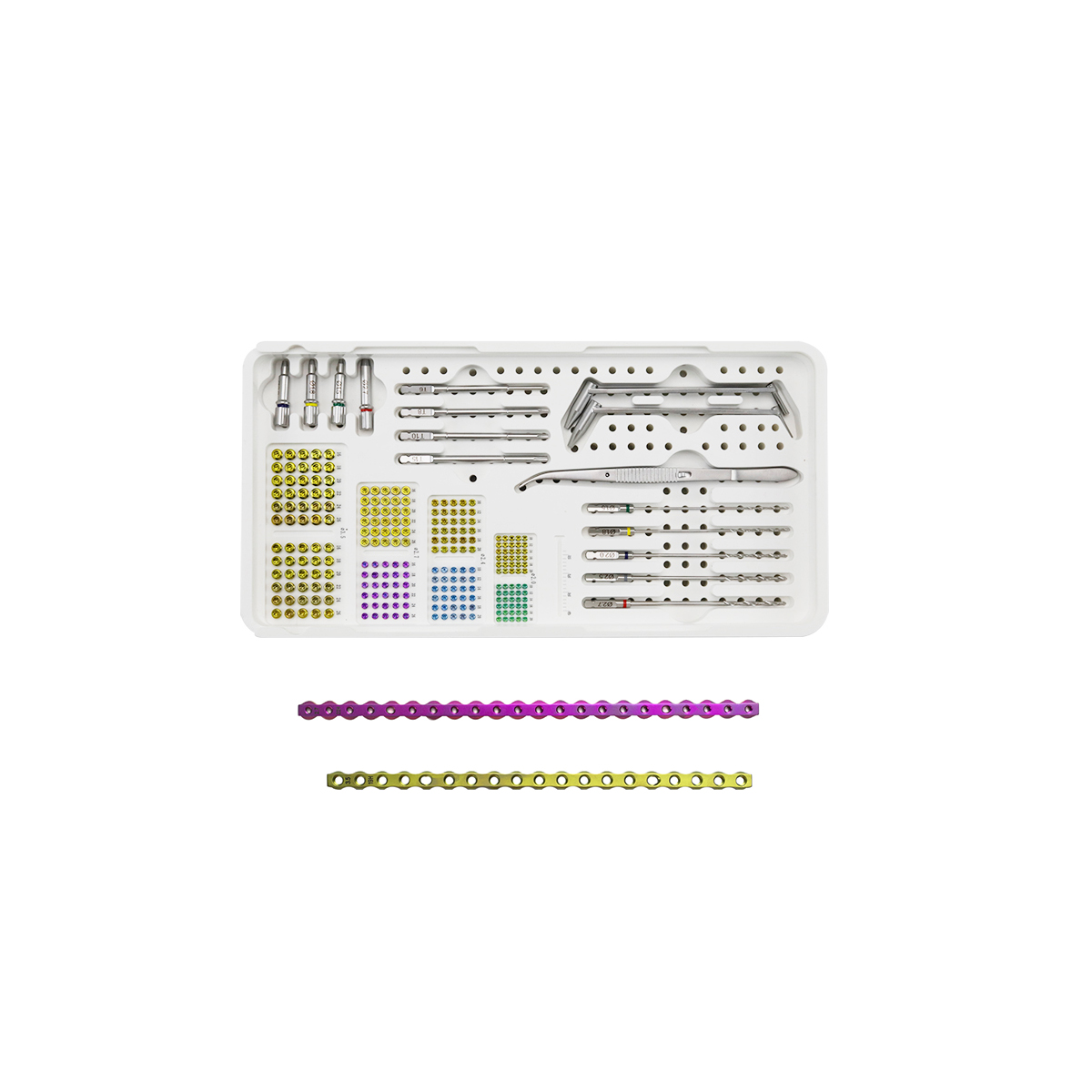

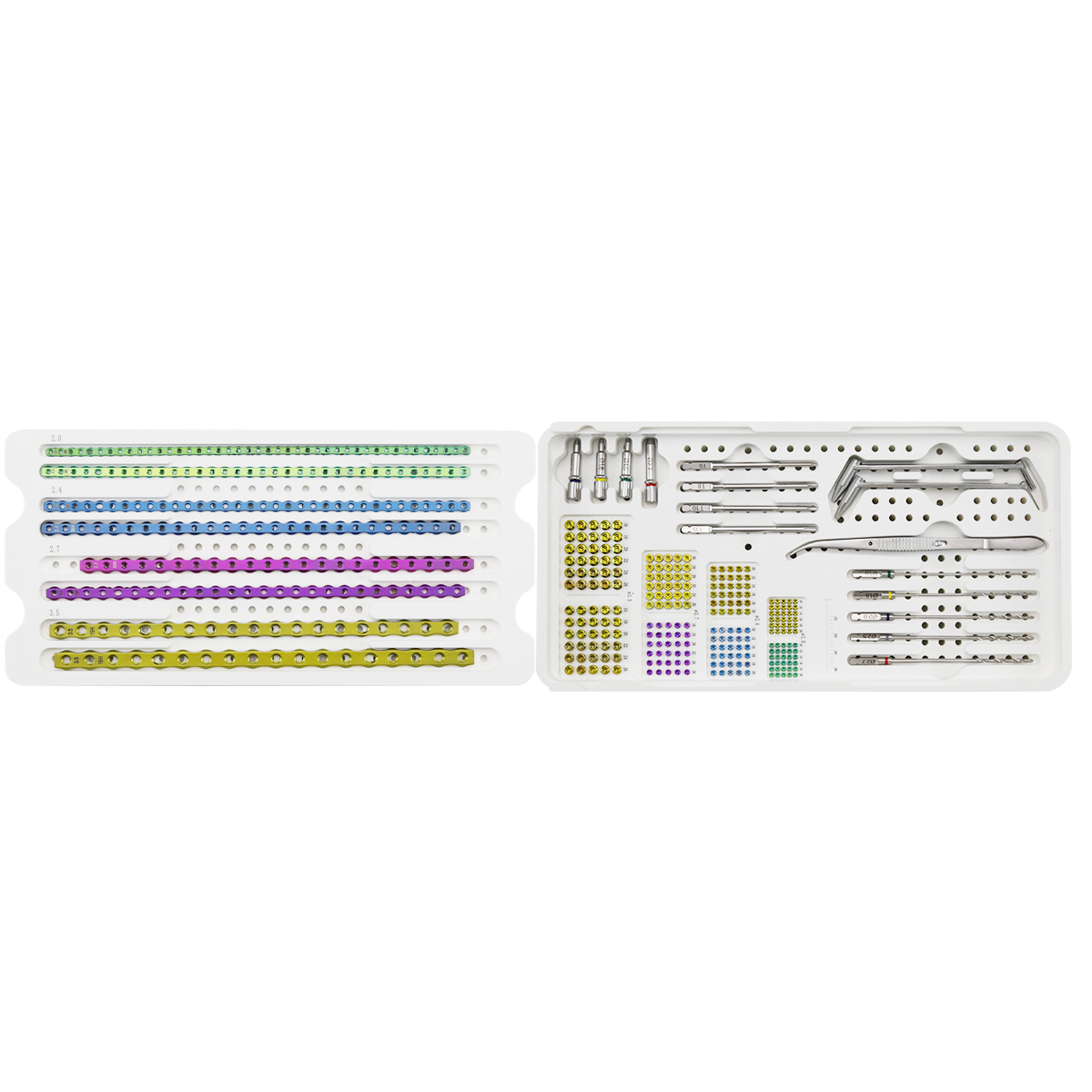

Product Photograph
