4.0mm ALPS (Advanced Locking Plate System) Titanium Plate and Screw System for Large Animal Fracture Fixation
Product Overview

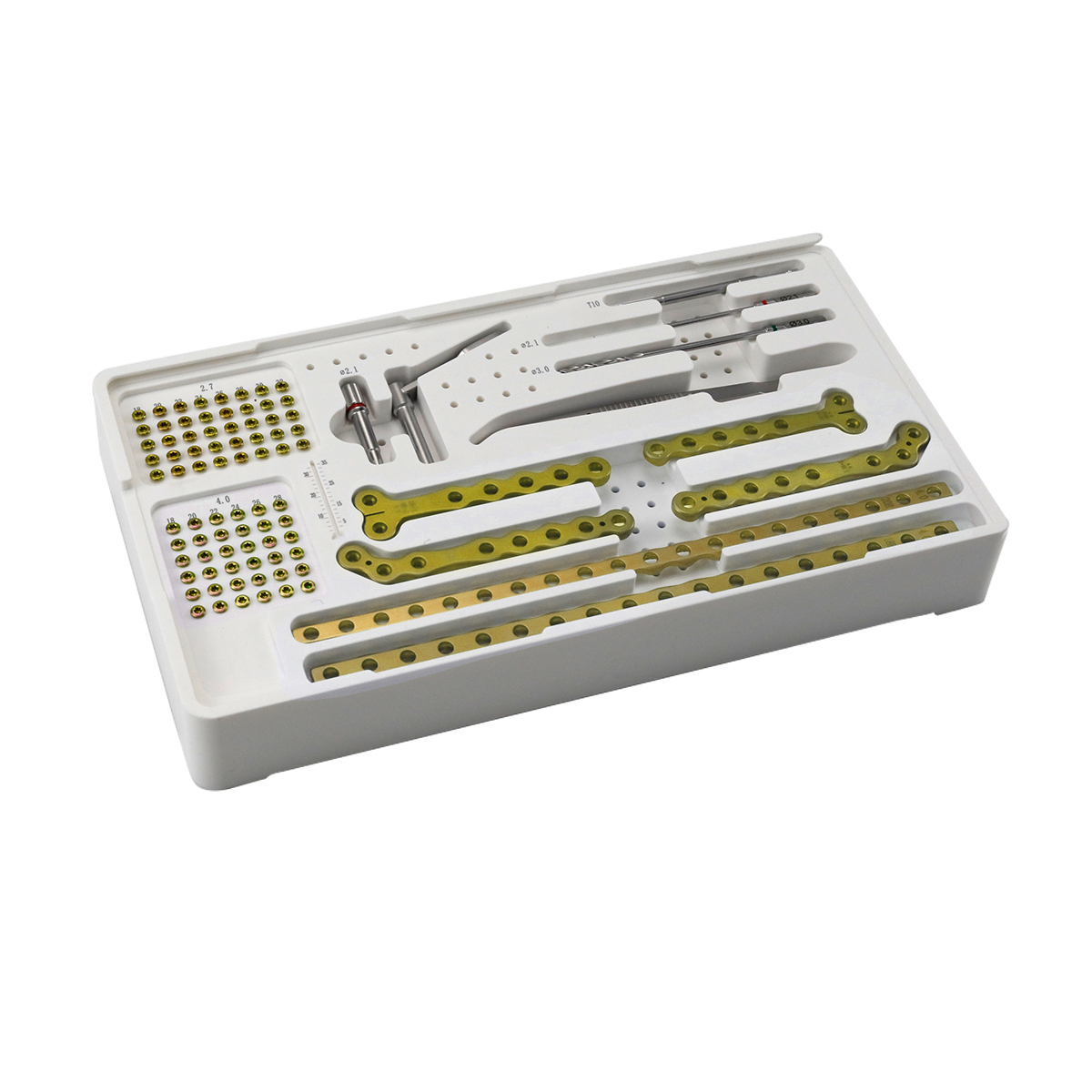

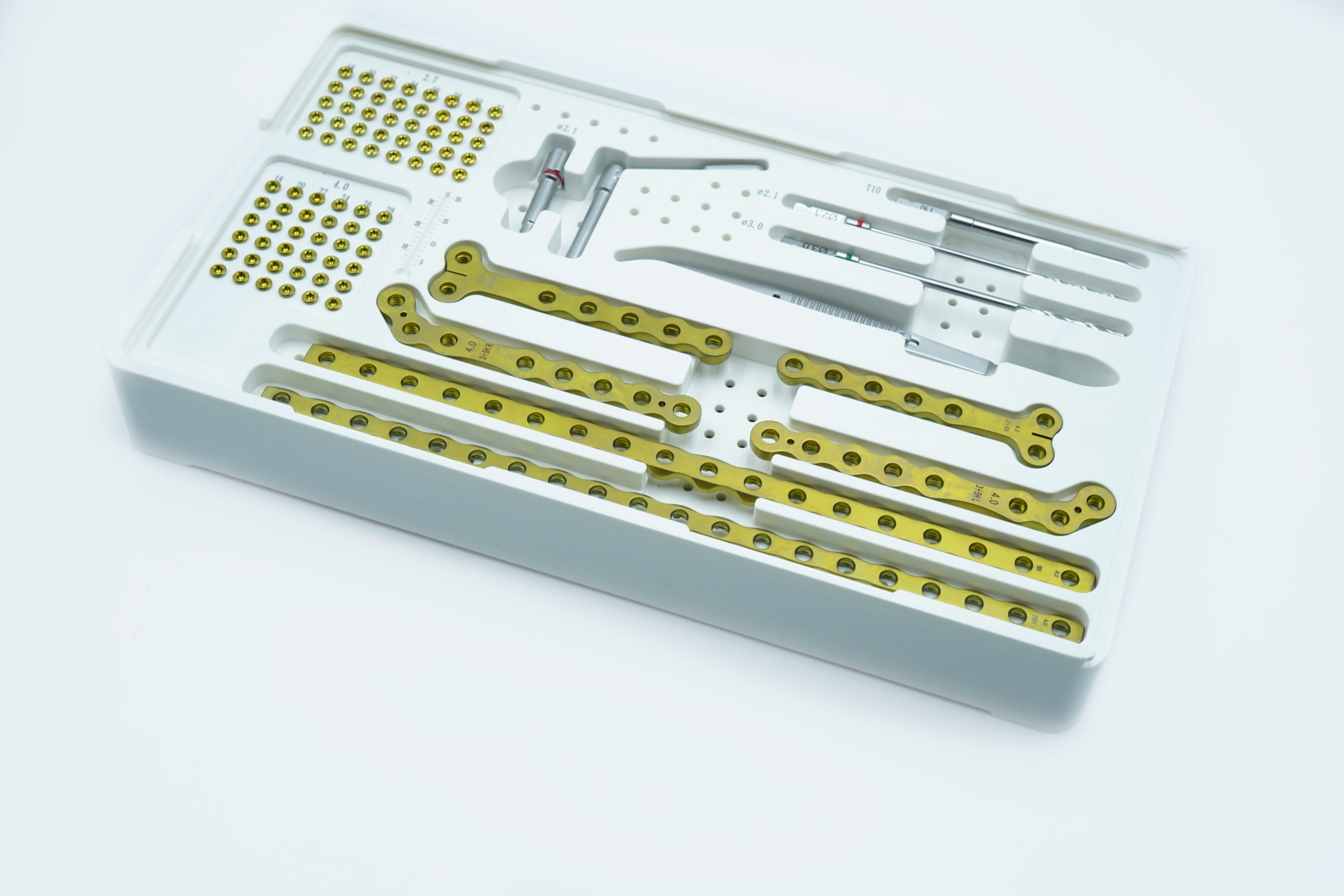

4.0mm ALPS Set | Veterinary Titanium Bone Plate and Screw

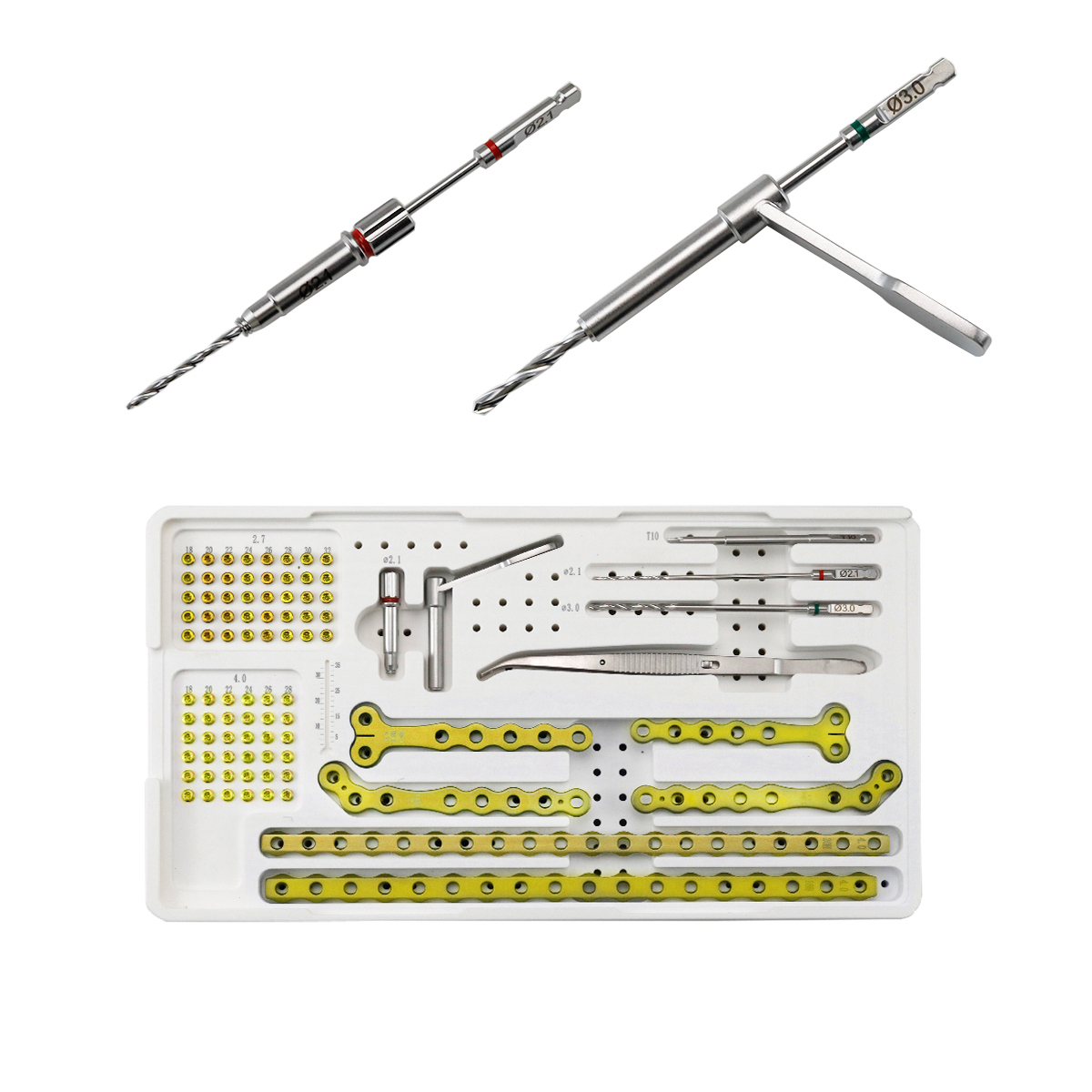

This 4.0mm ALPS Set is designed for veterinary orthopedic procedures involving large dogs. Made from high-strength titanium alloy, it includes locking plates, cortical screws, drills, and essential tools tailored for precise and stable fixation.
Key Features

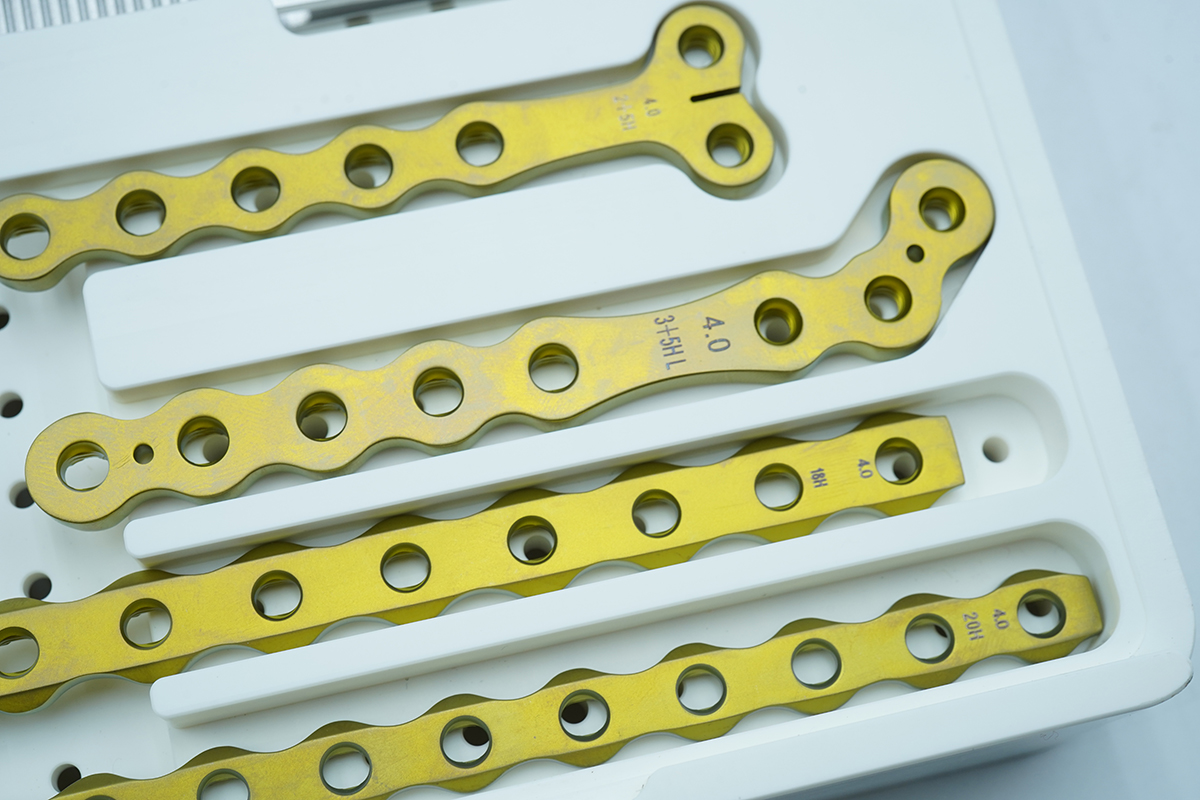

✔ Includes T-type and supracondylar plates optimized for complex femur fractures
✔ Color-coded system simplifies screw and instrument identification during surgery

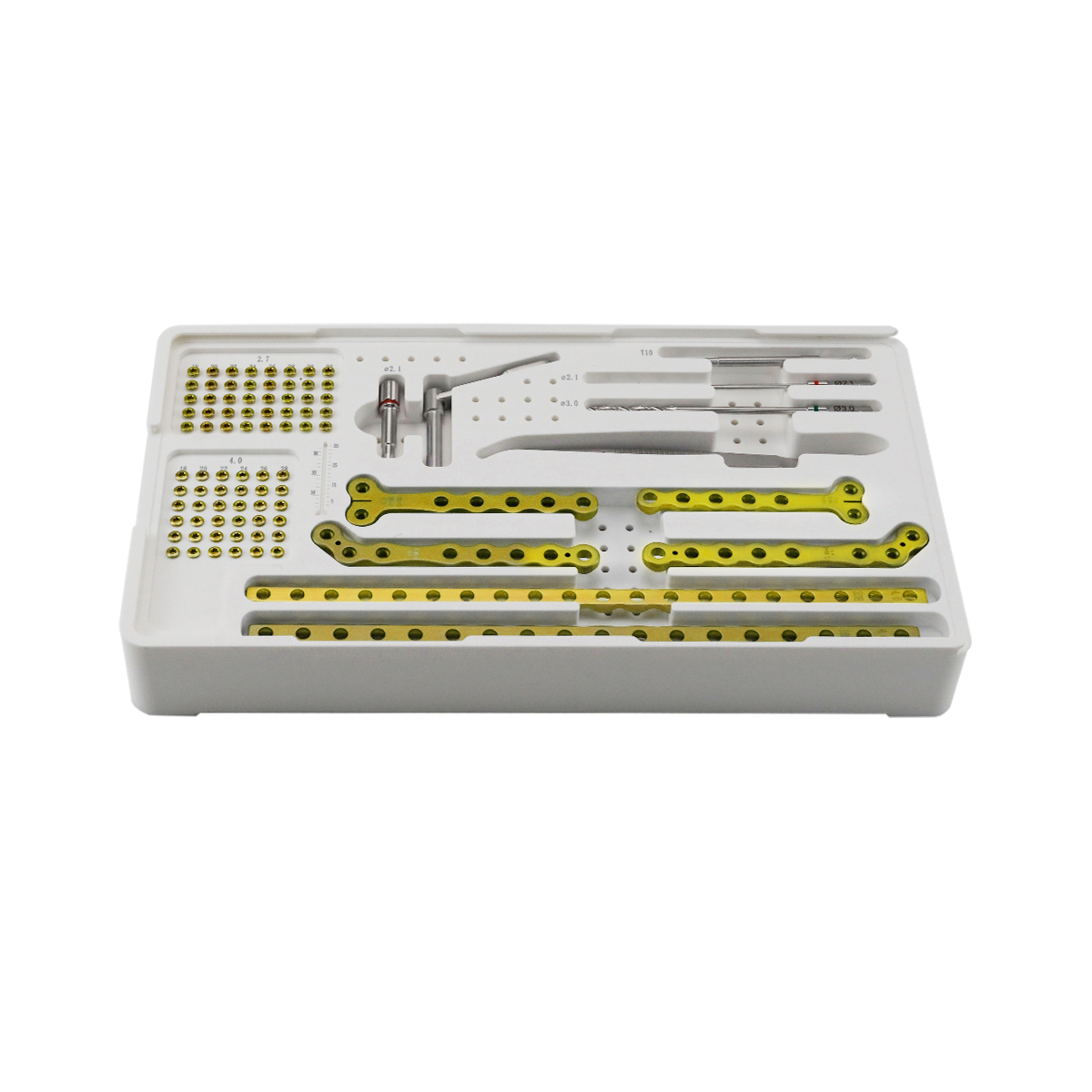

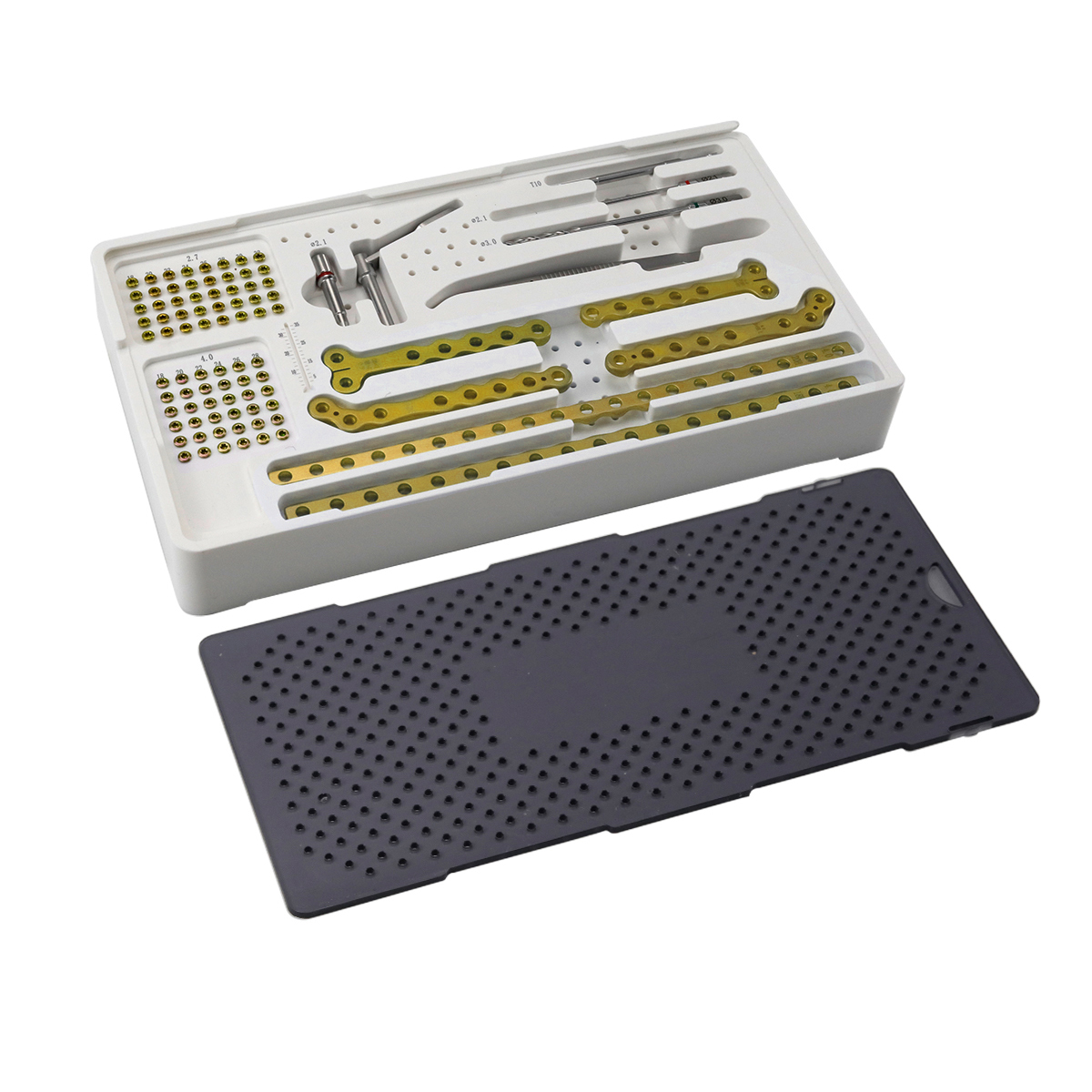

✔ Supplied in a sterilization box (29316140mm) for convenient autoclaving and storage
✔ Precision-engineered components ensure compatibility and surgical accuracy
Applications
Femur fracture stabilization
Supracondylar fracture repair
Large breed orthopedic reconstruction
Ideal for advanced veterinary trauma surgeries
Product Details

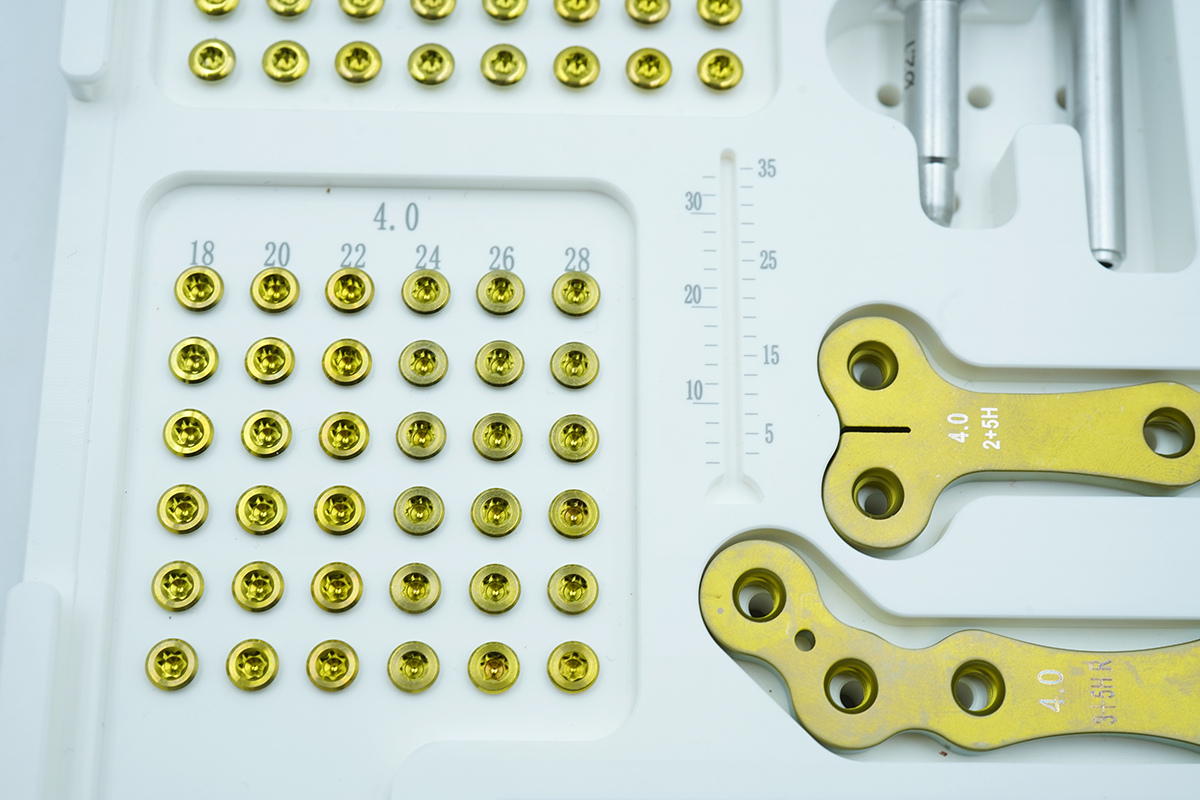

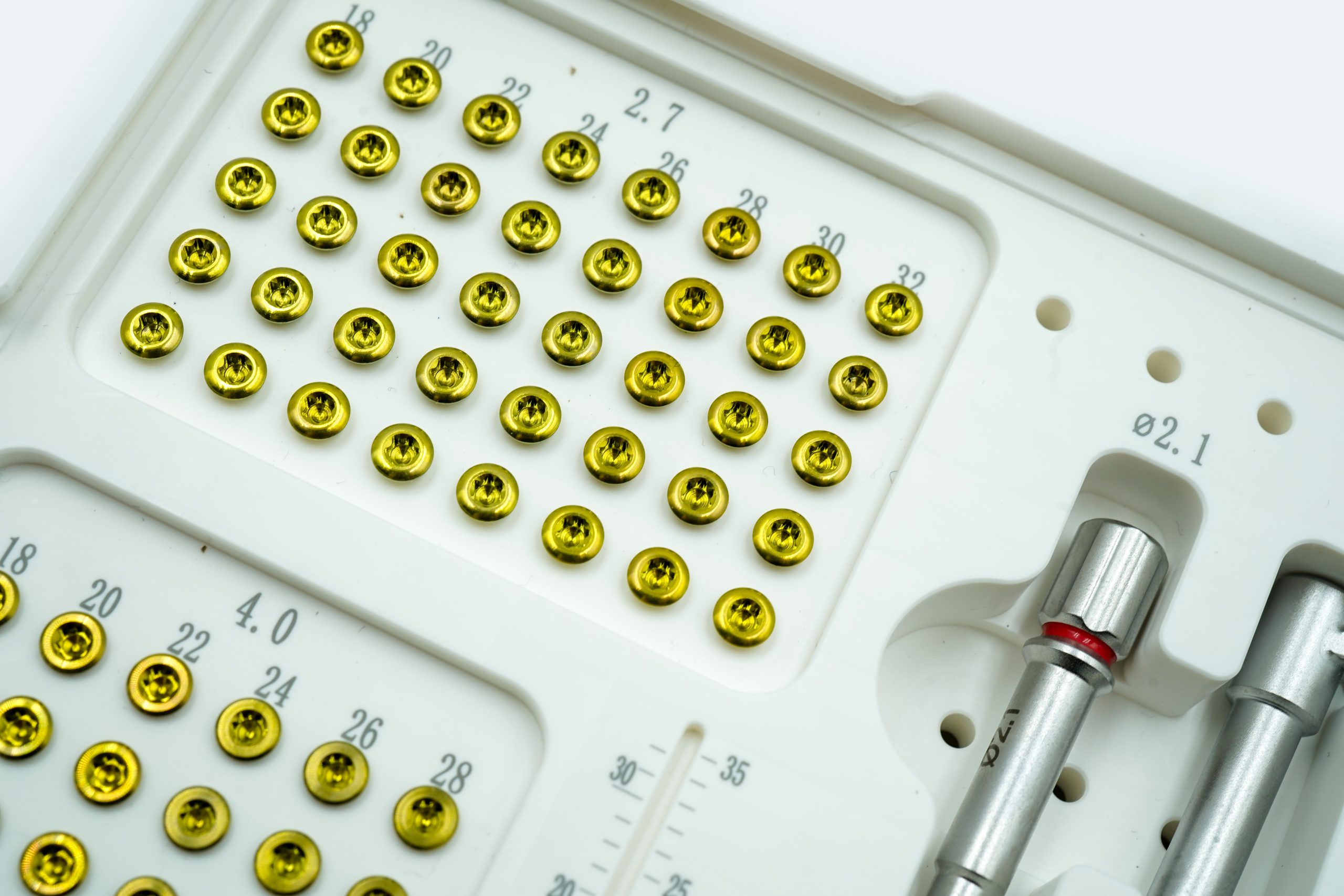

The set includes 4.0mm titanium screws in multiple lengths with color anodized coating for quick identification.

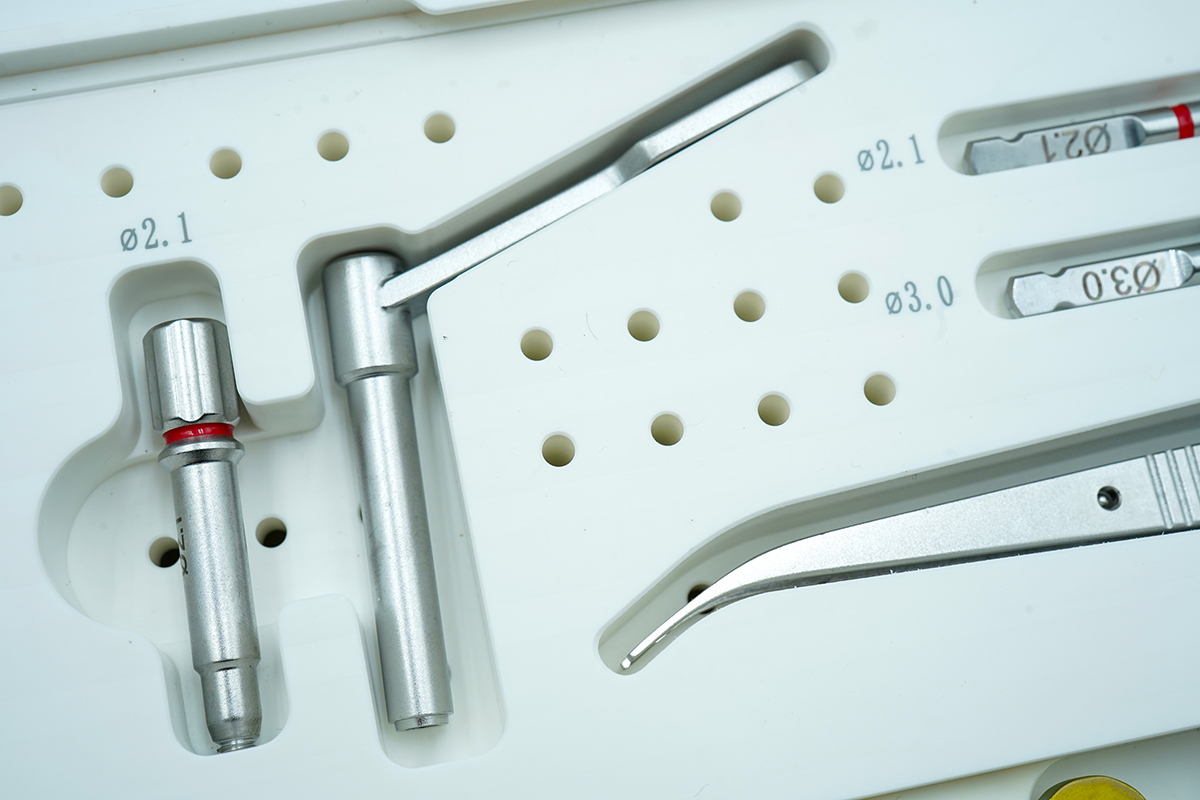

Ergonomic design of locking sleeves and manual tools allows precise operation even in compact surgical fields.

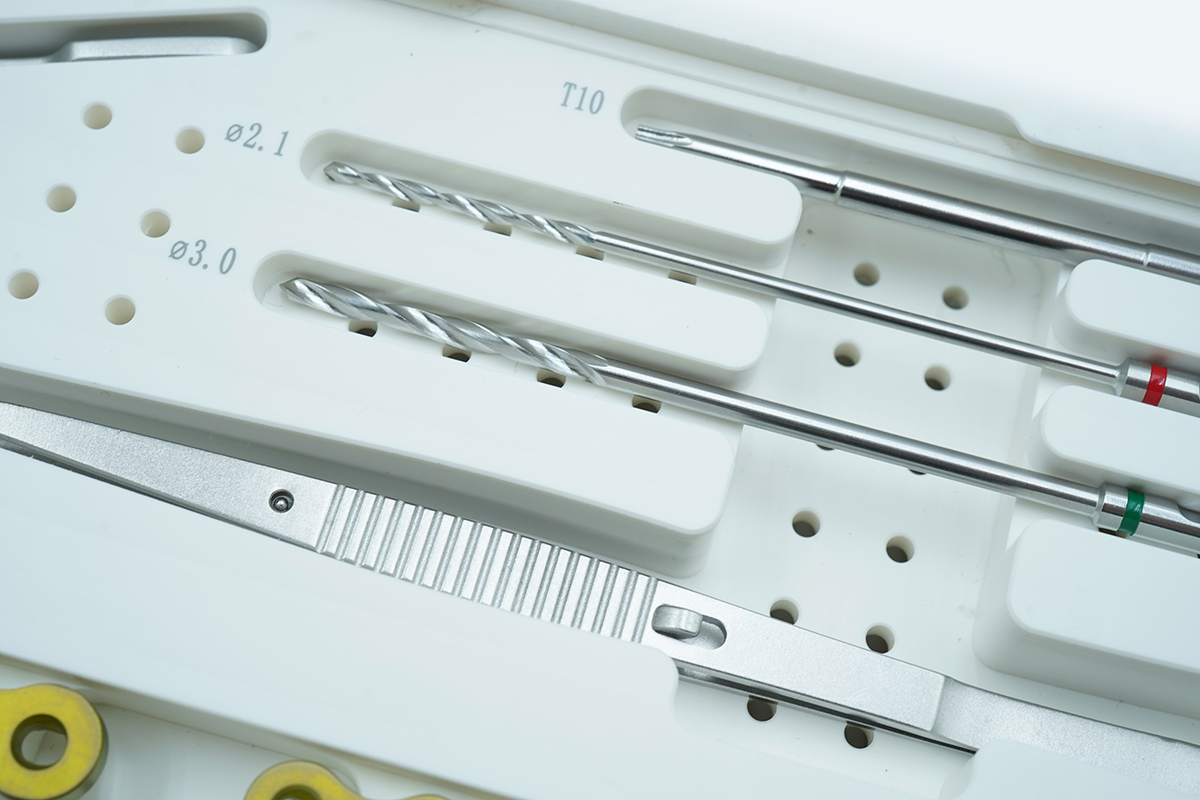

All drills and screwdrivers are clearly marked with laser-engraved sizes for intuitive usage.

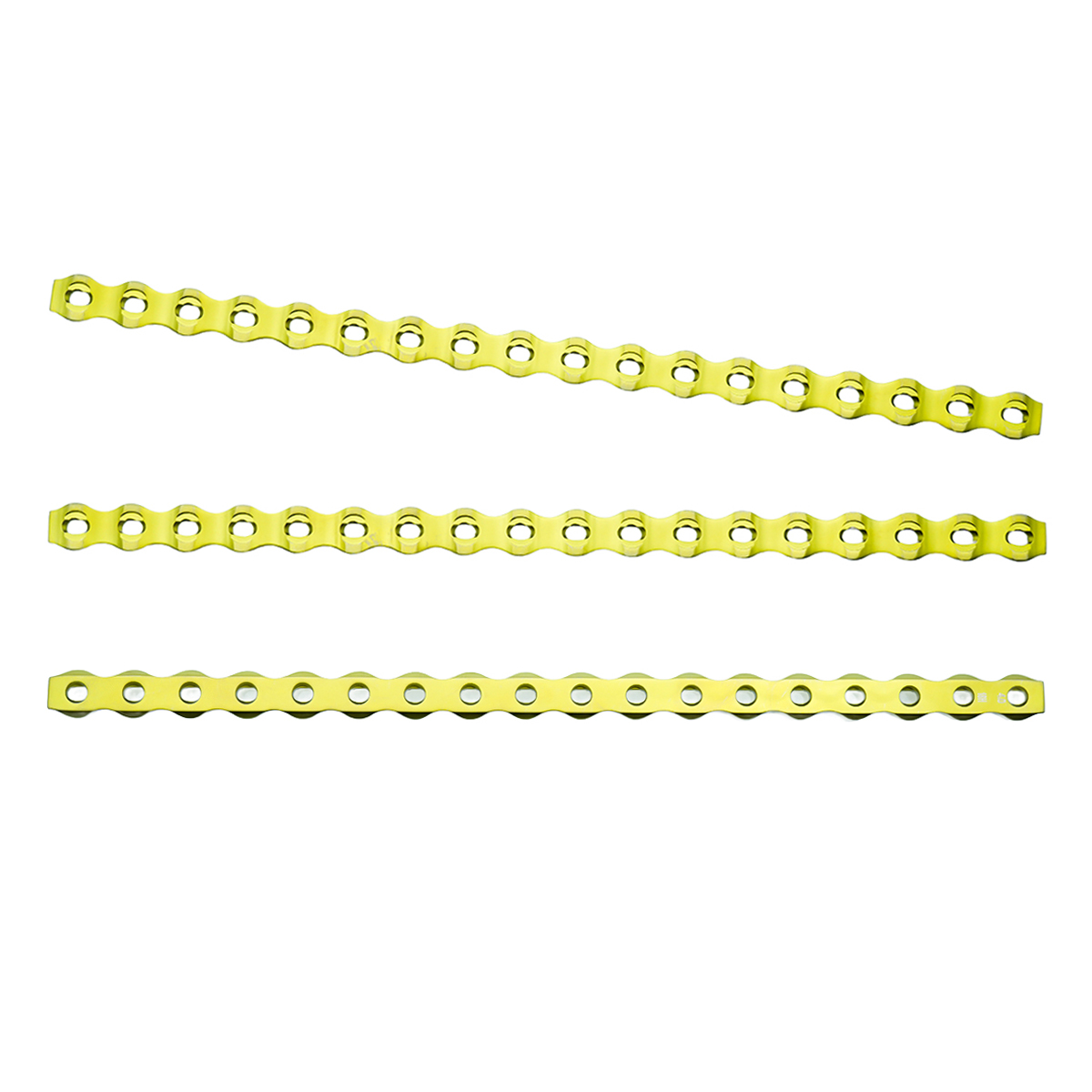

The plates are designed with multiple hole configurations to support different fracture types in medium animals.
| Products | Details | |||
| 4.0mm ALPS Set (PN:CQ40ALPS) |
1 | CQ10AS21AZT | φ2.1 Drill Bit | 1 |
| 2 | CQ10AS30AZT | φ3.0 Drill Bit | 1 | |
| 3 | CQ10AS21SDZ | φ2.1 Locking Drill Sleeve | 1 | |
| 4 | CQ10AS30DBDZ | φ3.0 Hand-hold Drill Sleeve | 1 | |
| 5 | CQTYT10MB | T10 Screwdriver | 1 | |
| 6 | CQTYLDN | Screw Holder Forceps | 1 | |
| 7 | CPA4020 | ALPS Locking Plate 10mm20H | 1 | |
| 8 | CPA4018 | ALPS Locking Plate 11.5mm18H | 1 | |
| 9 | CPTTL4025 | 4.0mm T-Type Locking Plate 2+5H 10mm | 1 | |
| 10 | CPTTL4025M | 4.0mm T-Type Locking Plate 2+5H 11mm | 1 | |
| 11 | CPLTL4035L | Supracondylar Locking Plate 3+5H 11.5mm L | 1 | |
| 12 | CPLTL4035R | Supracondylar Locking Plate 3+5H 11.5mm R | 1 | |
| 13 | CSCF2718 | Cortical Screw 2.7*18 | 5 | |
| 14 | CSCF2720 | Cortical Screw 2.7*20 | 5 | |
| 15 | CSCF2722 | Cortical Screw 2.7*22 | 5 | |
| 16 | CSCF2724 | Cortical Screw 2.7*24 | 5 | |
| 17 | CSCF2726 | Cortical Screw 2.7*26 | 5 | |
| 18 | CSCF2728 | Cortical Screw 2.7*28 | 5 | |
| 19 | CSCF2730 | Cortical Screw 2.7*30 | 5 | |
| 20 | CSCF2732 | Cortical Screw 2.7*32 | 5 | |
| 21 | CSS4018 | Locking Screw 4.0*18 | 6 | |
| 22 | CSS4020 | Locking Screw 4.0*20 | 6 | |
| 23 | CSS4022 | Locking Screw 4.0*22 | 6 | |
| 24 | CSS4024 | Locking Screw 4.0*24 | 6 | |
| 25 | CSS4026 | Locking Screw 4.0*26 | 6 | |
| 26 | CSS4028 | Locking Screw 4.0*28 | 6 | |
| 27 | CQ10ASMJH | HPP+PPSU Sterilization Box 293*161*40 | 1 | |

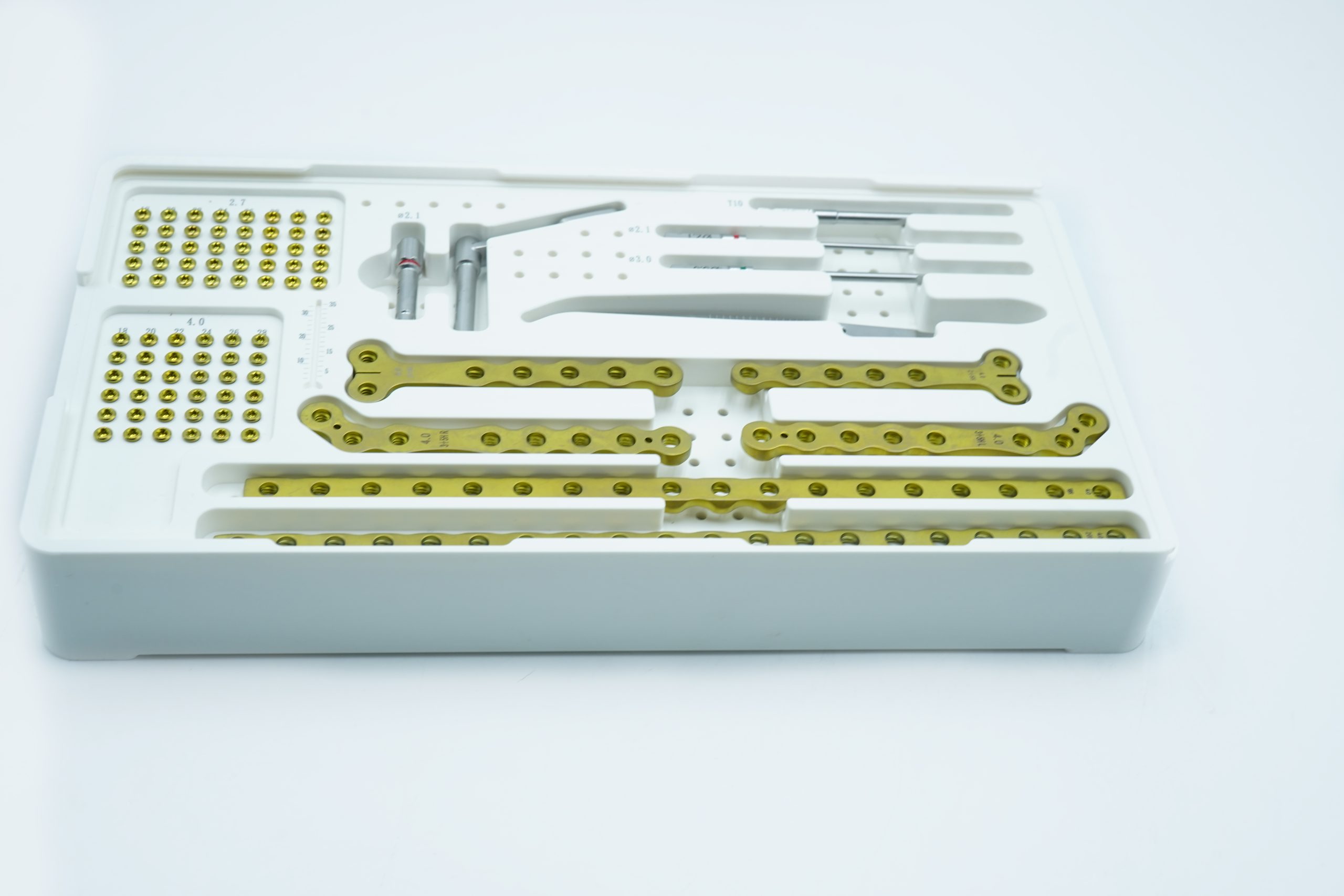

Product Photograph
