3.2mm ALPS (Advanced Locking Plate System) Instrument Set for Medium Animal Fracture Fixation
Product Overview
3.2mm ALPS Set | Veterinary Titanium Instrument Set
This set is designed for bone fracture fixation and orthopedic surgeries in small animals such as dogs and cats. It includes a complete selection of titanium locking plates, screws, and surgical tools with full compatibility for 3.2mm ALPS procedures.
Key Features
✔ Includes a wide range of 3.2mm titanium locking and cortical screws for multiple surgical needs
✔ Contains anatomical plates such as T-type, L-type, and supracondylar plates for precise bone contouring
✔ Color-coded drill sleeves and drivers make intraoperative identification fast and efficient

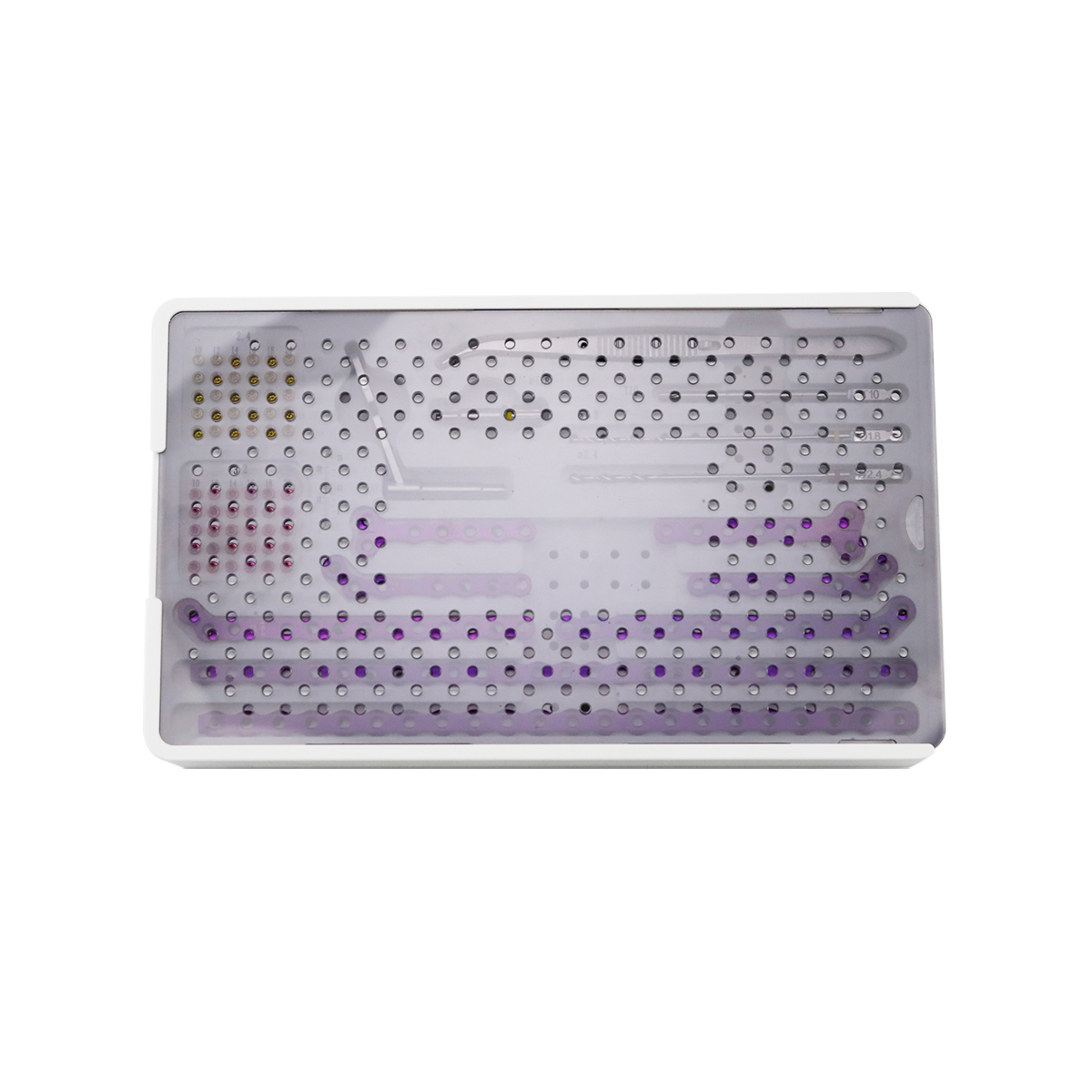

✔ Supplied in a compact sterilization box (256×153×30mm)
Applications
Fracture Repair of radius, ulna, and femur
Osteotomy fixation procedures
Small animal orthopedic trauma treatment
Comprehensive solution for 3.2mm internal fixation needs
Product Details
Includes titanium alloy screws in multiple lengths for precise adaptation to various fracture types.

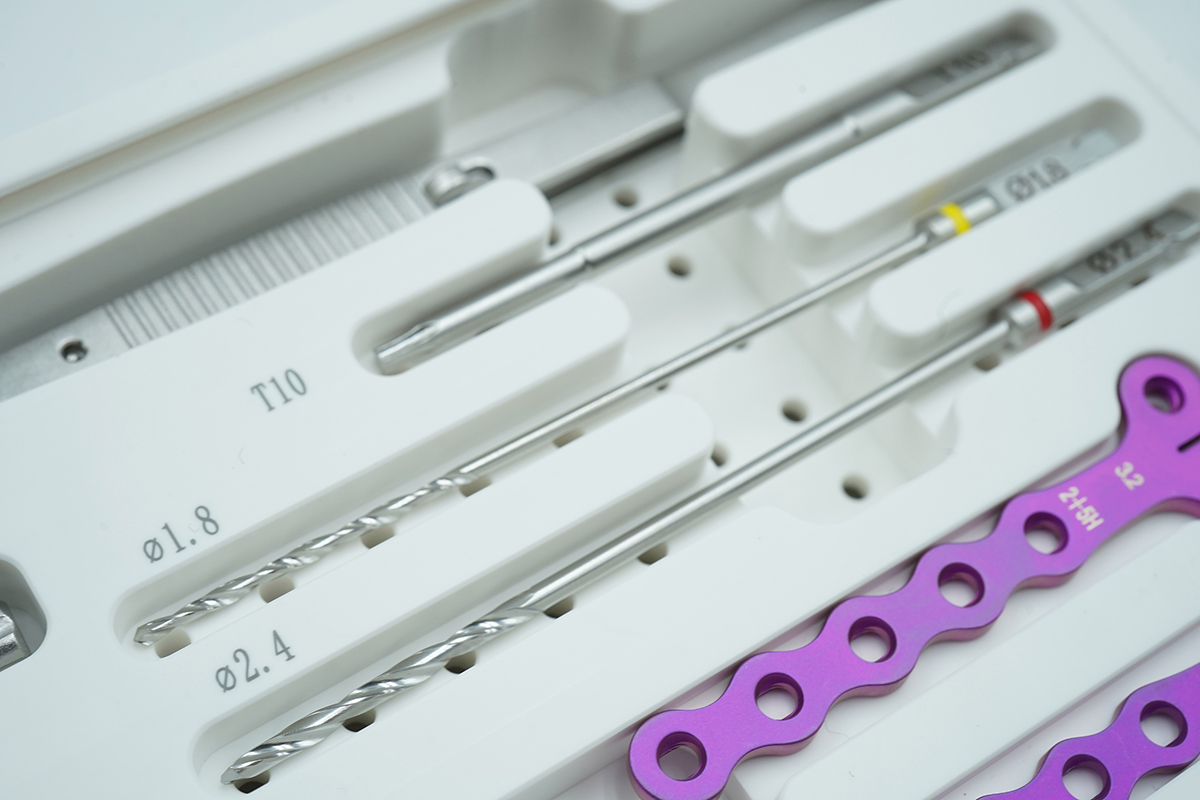

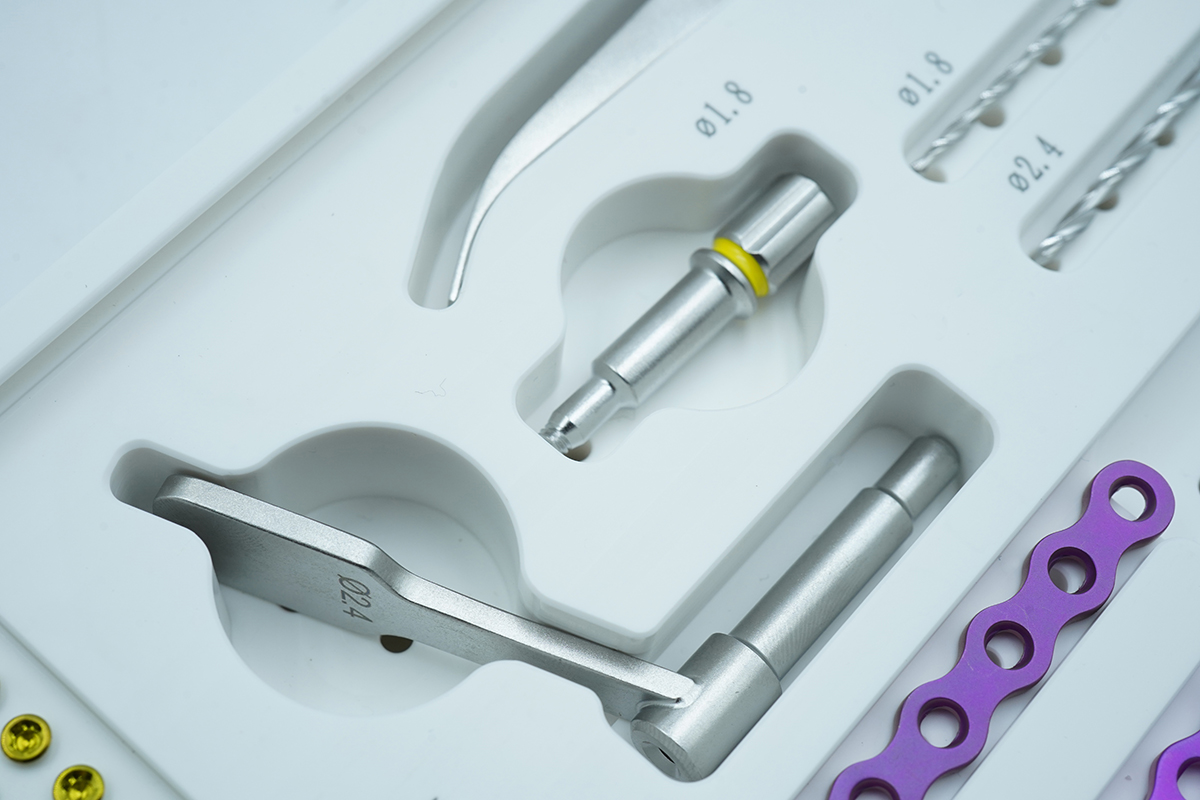

Equipped with dedicated drills and sleeves for accurate and safe surgical procedures.
Surgical aids and screwdriver are ergonomically designed for smooth handling and efficient workflow.

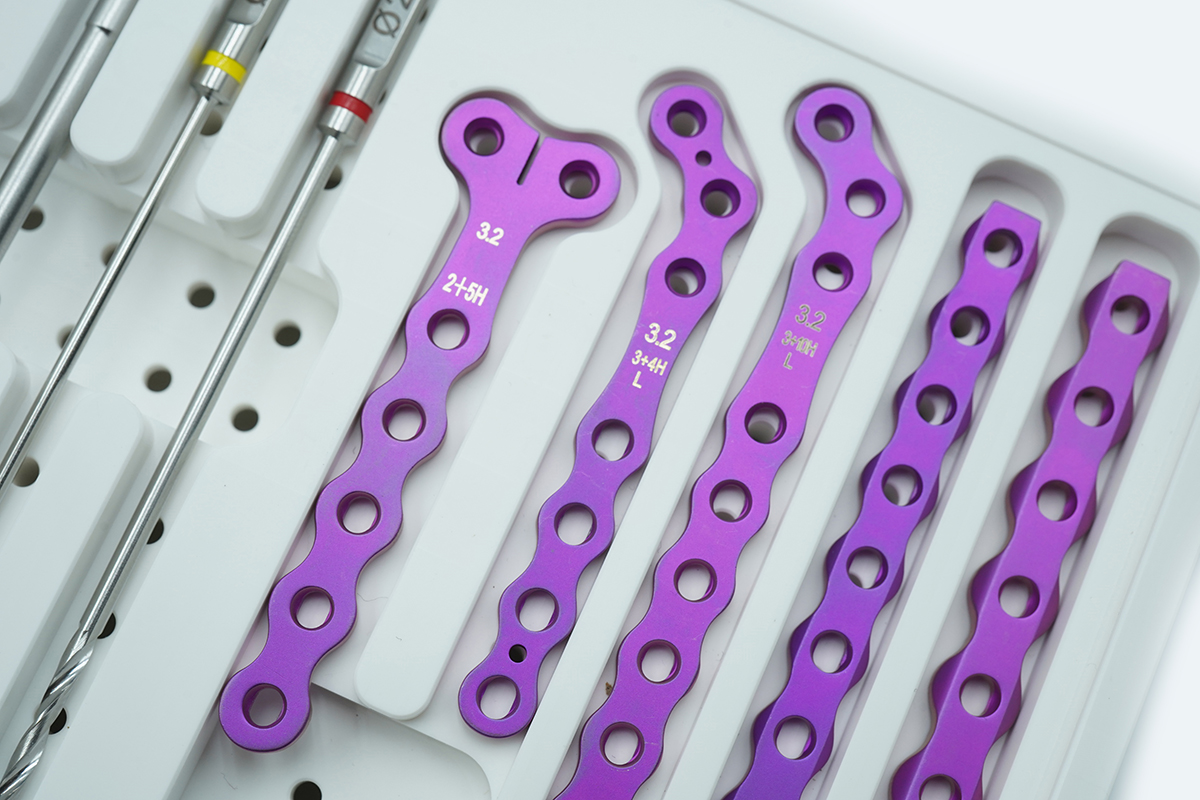

Anodized 3.2mm ALPS locking plates offer excellent biocompatibility and enhanced corrosion resistance.
| Products | Details | |||
| 3.2mm ALPS Set (PN:CQ32ALPS) |
1 | CQ8AS18AZT | φ1.8 Drill Bit | 1 |
| 2 | CQ8AS24AZT | φ2.4 Drill Bit | 1 | |
| 3 | CQ8AS18SDZ | φ1.8 Locking Drill Sleeve | 1 | |
| 4 | CQ8AS24DBDZ | φ2.4 Hand-hold Drill Sleeve | 1 | |
| 5 | CQTYT10MB | T10 Screwdriver | 1 | |
| 6 | CQTYLDN | Screw Holder Forceps | 1 | |
| 7 | CPA3226 | ALPS Locking Plate 7.5mm 3.2+26H | 1 | |
| 8 | CPA3222 | ALPS Locking Plate 8.5mm 3.2+22H | 1 | |
| 9 | CPTTL3225 | 3.2mm T-Type Locking Plate 2+5H 59*7.5*2.6 | 1 | |
| 10 | CPTTL3225M | 3.2mm T-Type Locking Plate 2+5H 68*8.5*3 | 1 | |
| 11 | CPLTL3234L | Supracondylar Locking Plate 3+4H L | 1 | |
| 12 | CPLTL3234R | Supracondylar Locking Plate 3+4H R | 1 | |
| 13 | CPLTL32310L | 3.2mm L Locking Plate 3+10H L | 1 | |
| 14 | CPLTL32310R | 3.2mm L Locking Plate 3+10H R | 1 | |
| 15 | CSCF2410 | Cortical Screw 2.4*10 | 5 | |
| 16 | CSCF2412 | Cortical Screw 2.4*12 | 5 | |
| 17 | CSCF2414 | Cortical Screw 2.4*14 | 5 | |
| 18 | CSCF2416 | Cortical Screw 2.4*16 | 5 | |
| 19 | CSCF2418 | Cortical Screw 2.4*18 | 5 | |
| 20 | CSCF2420 | Cortical Screw 2.4*20 | 5 | |
| 21 | CSS3210 | Locking Screw 3.2*10 | 5 | |
| 22 | CSS3212 | Locking Screw 3.2*12 | 5 | |
| 23 | CSS3214 | Locking Screw 3.2*14 | 5 | |
| 24 | CSS3216 | Locking Screw 3.2*16 | 5 | |
| 25 | CSS3218 | Locking Screw 3.2*18 | 5 | |
| 26 | CSS3220 | Locking Screw 3.2*20 | 5 | |
| 27 | CQ8ASMJH | HPP+PPSU Sterilization Box 256*153*30 | 1 | |

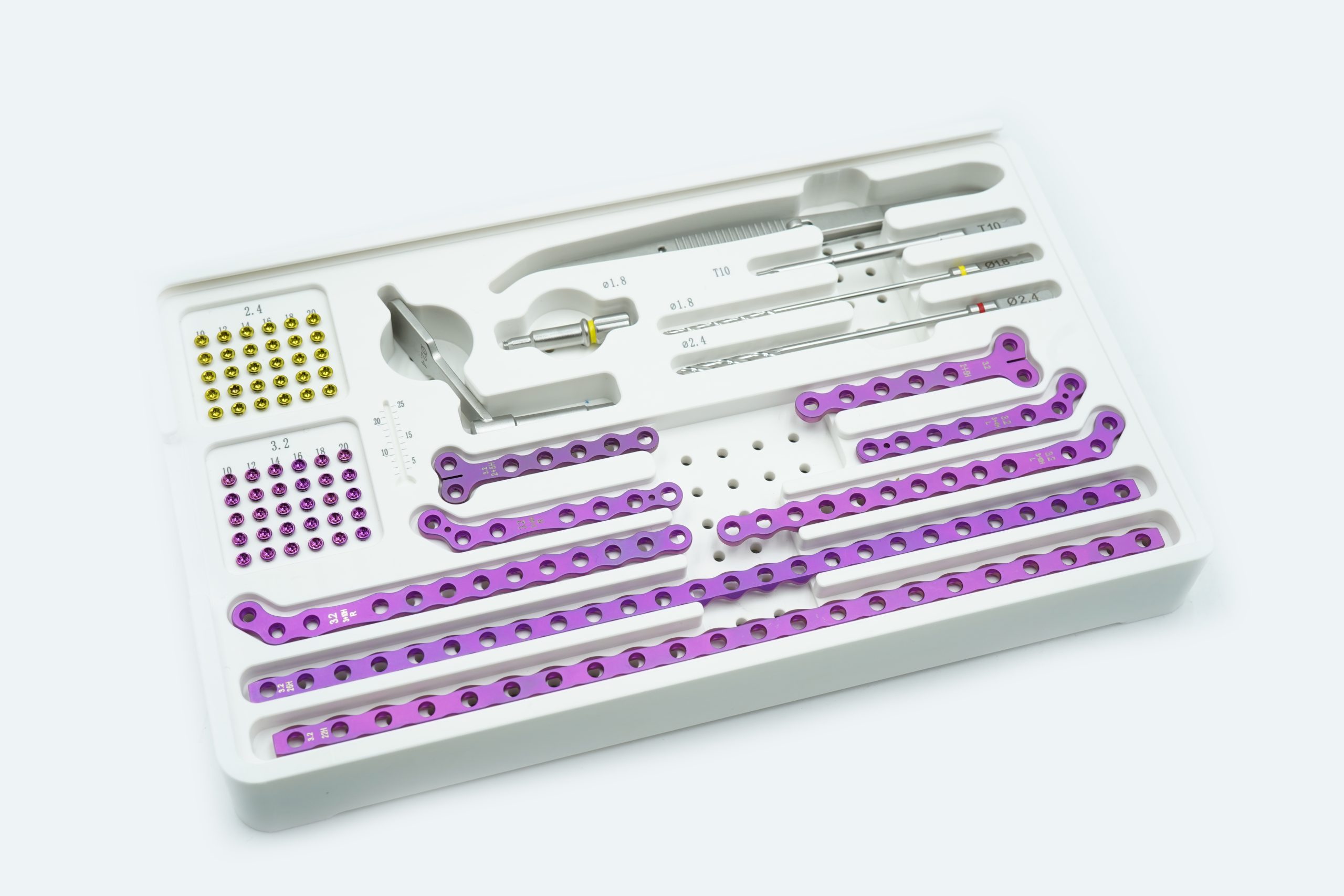

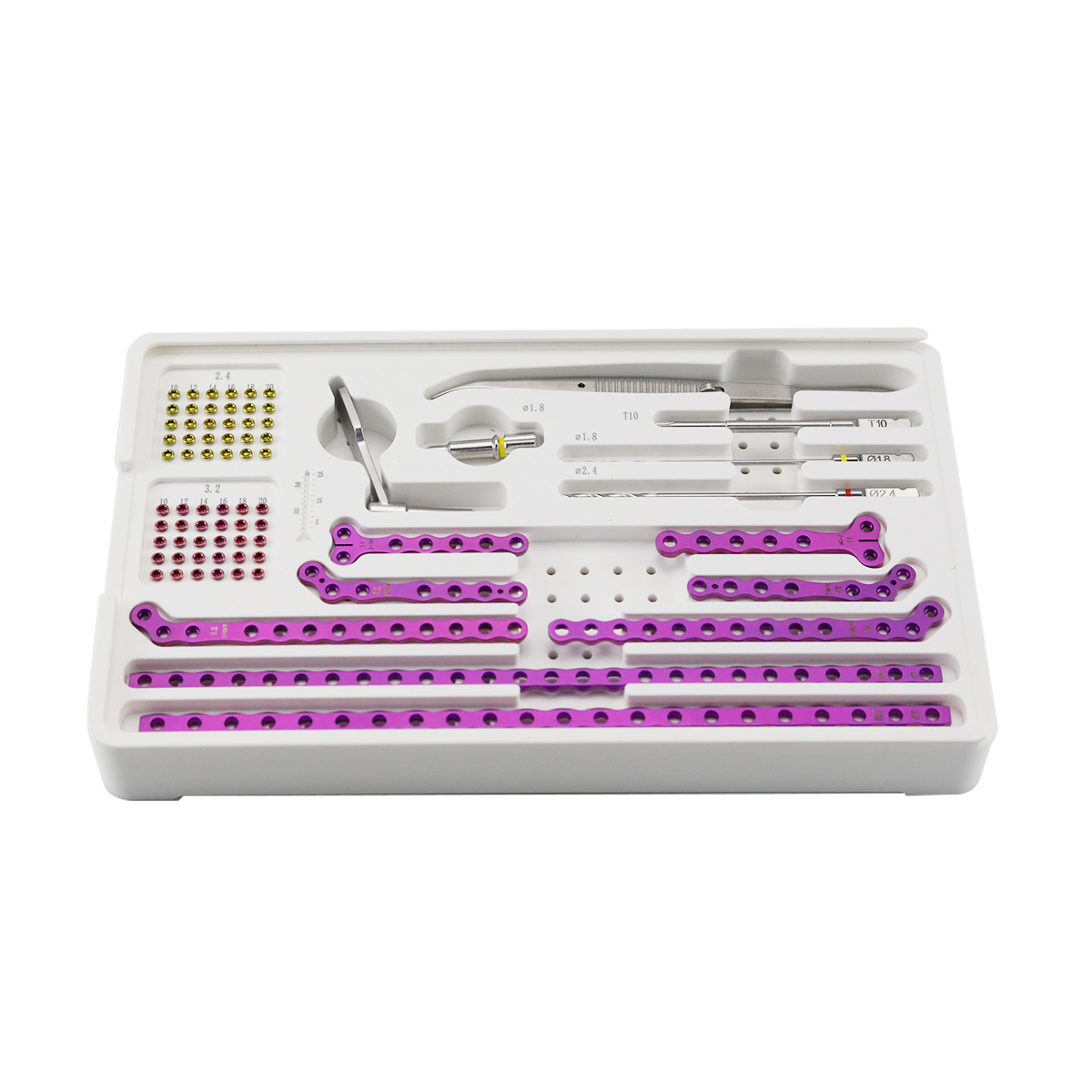

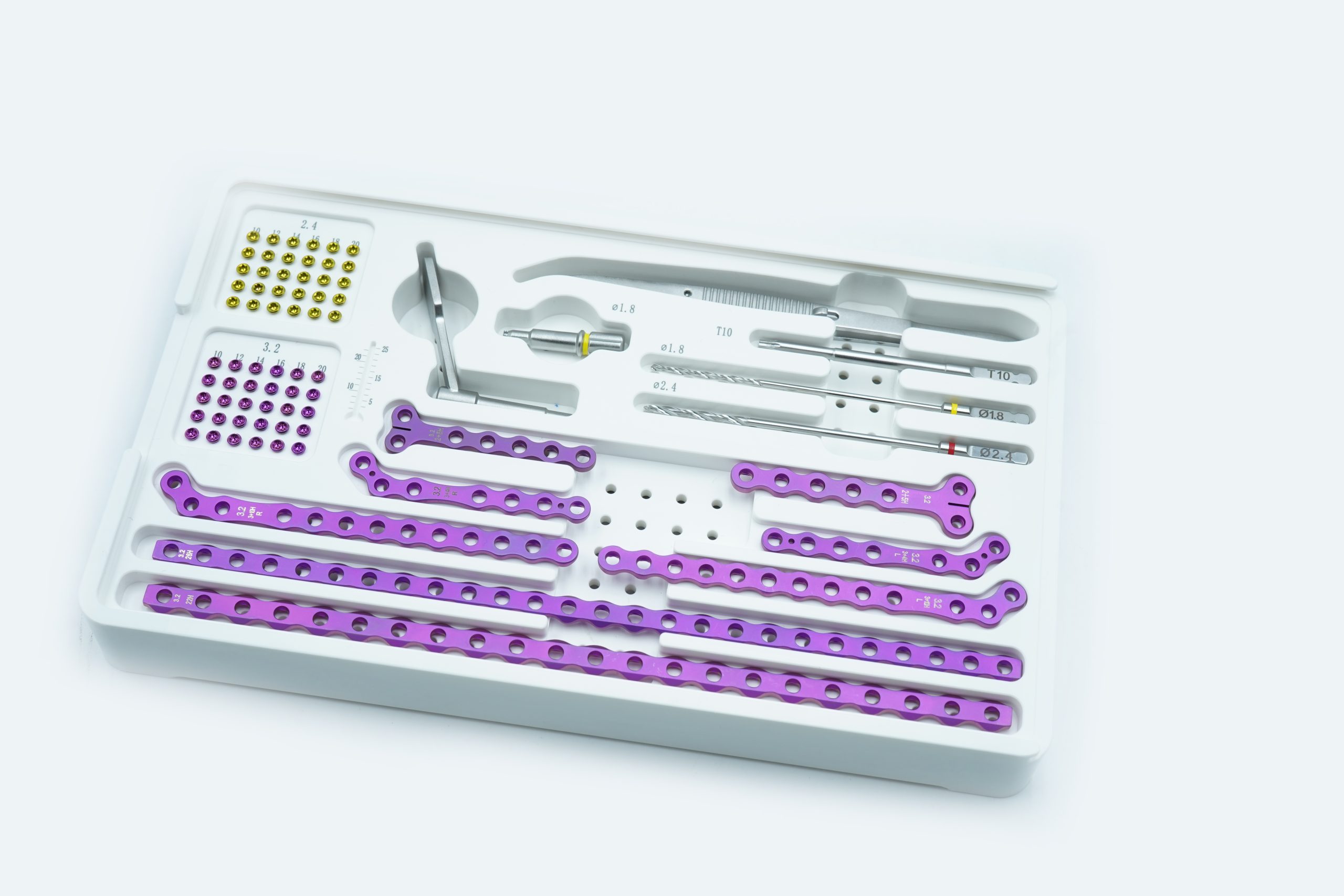

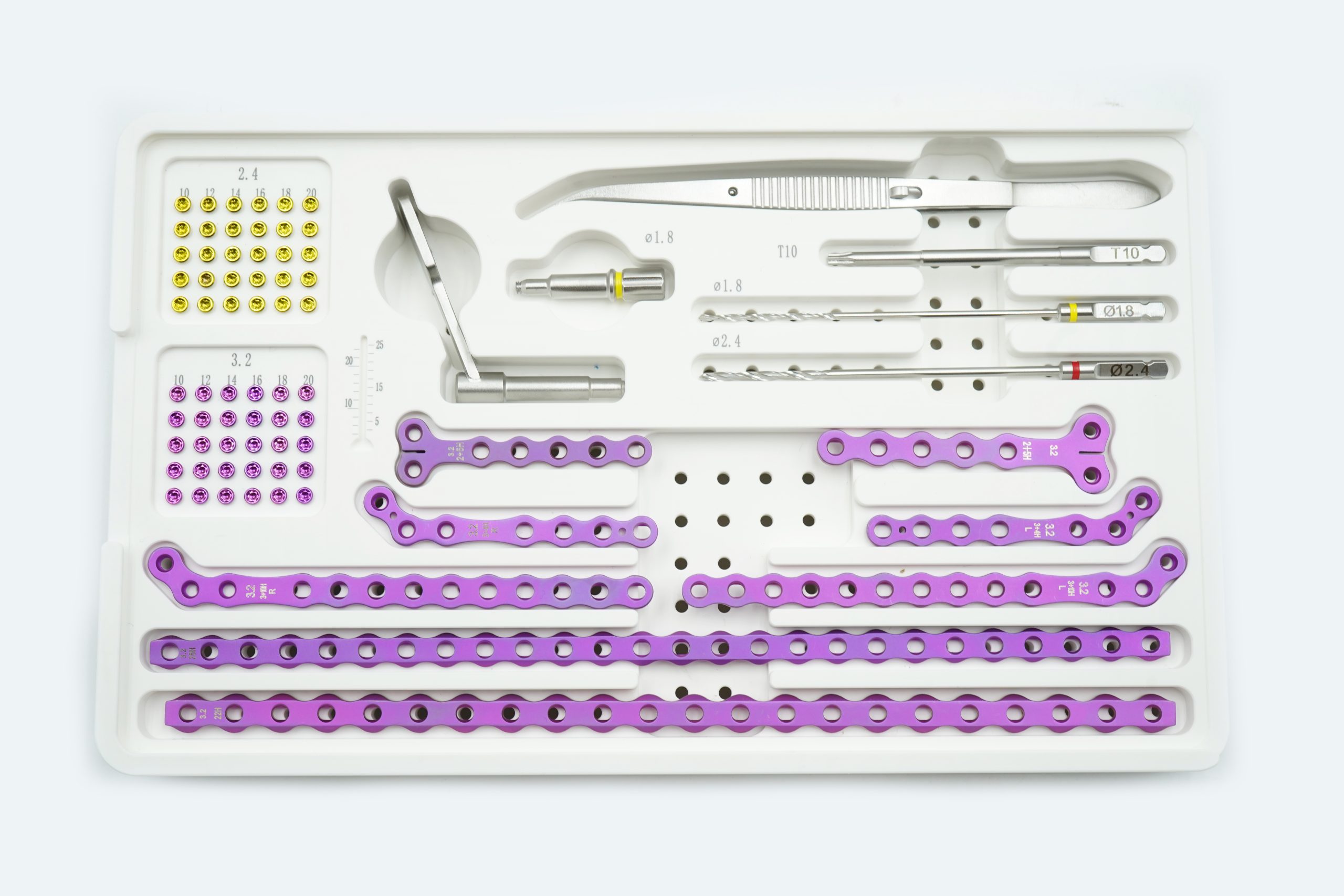

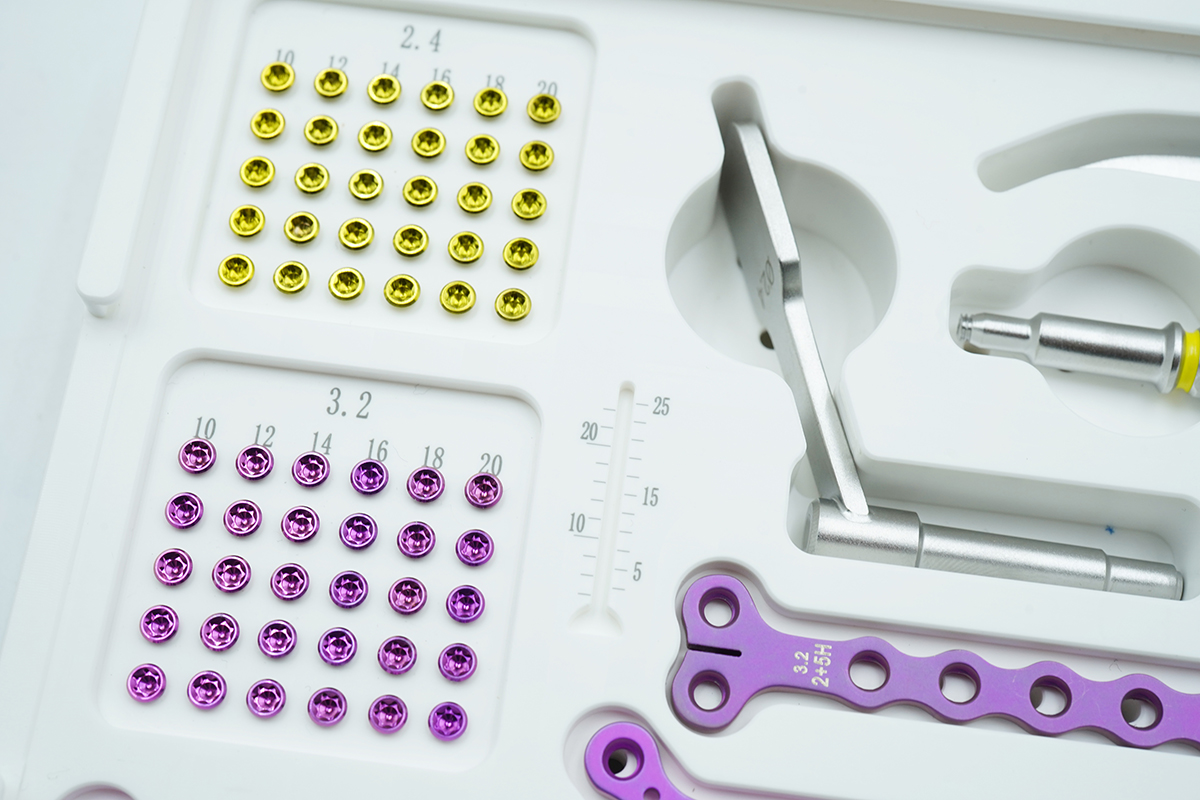

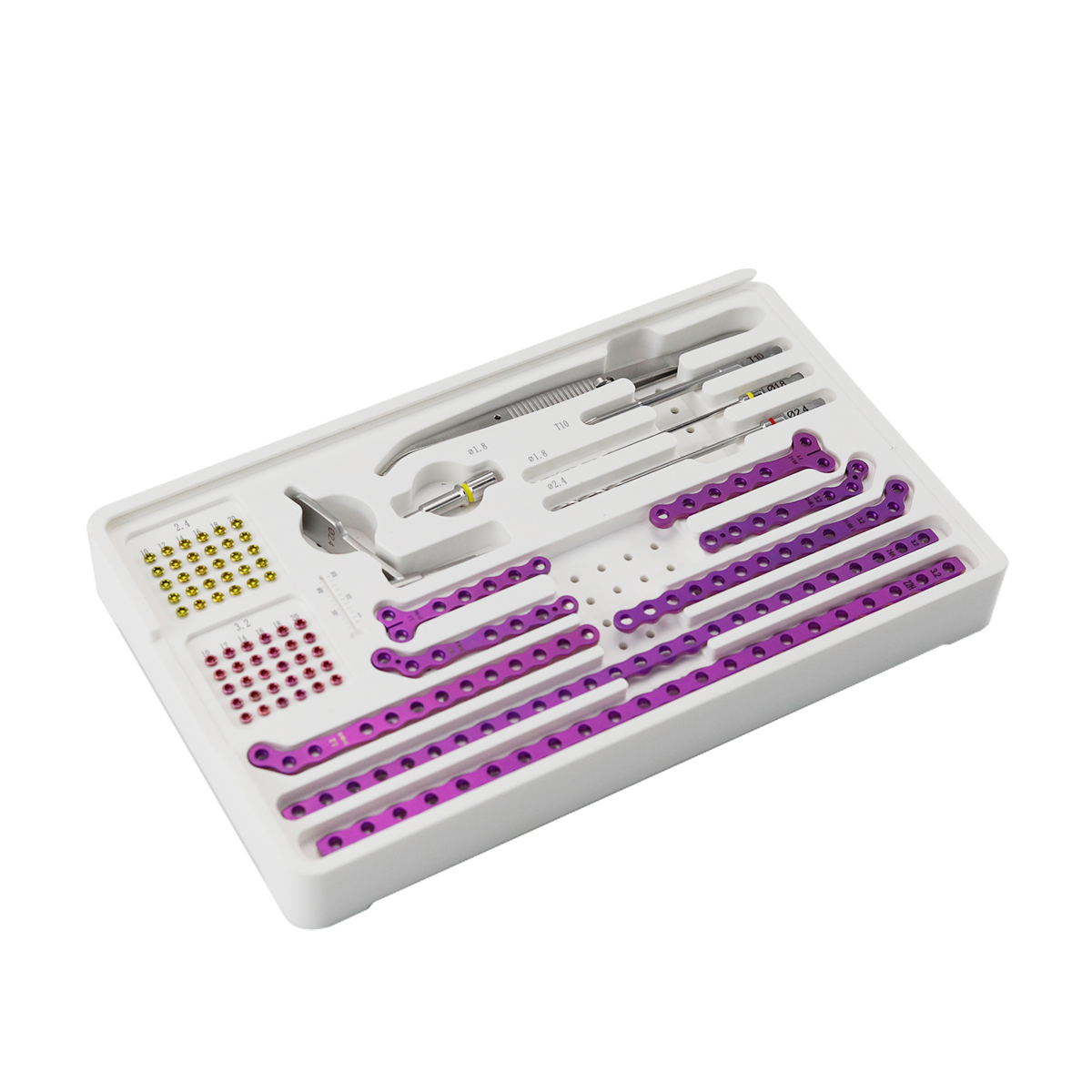

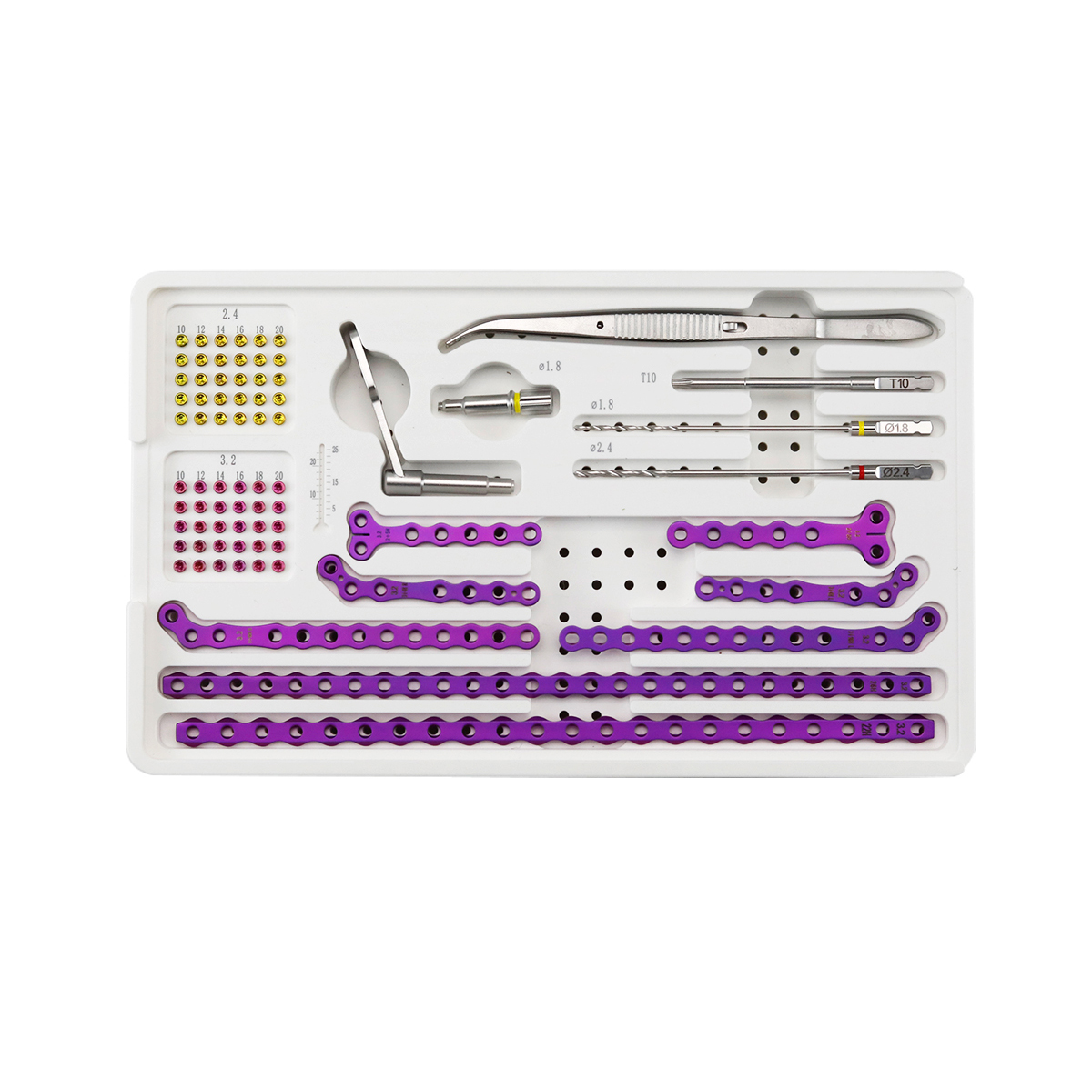

Product Photograph
