2.7/3.5 Multi-axial Locking TPLO Set for Veterinary Orthopedic Surgery
Product Overview
2.7/3.5 Multi-axial Locking TPLO Set | Veterinary Titanium Bone Plate System
This TPLO set is specifically engineered for medium to large breed dogs undergoing cranial cruciate ligament (CCL) surgery. It includes a complete range of 2.7mm and 3.5mm multi-axial locking TPLO plates, cortical and locking screws, AO-compatible instruments, drill guides, and measuring tools. The set provides reliable fixation strength with flexible screw options and is delivered in a sterilization-ready tray for clinical use.
Key Features
✔ Covers both 2.7mm and 3.5mm TPLO plates with full-size matching locking and cortical screws
✔ Features high-torque AO screwdriver (T15), torque wrench (1.5 N·m), and compression drill guides for optimal control
✔ All components are organized in a durable one-piece sterilization box for easy preparation and reuse
✔ Flexible screw pairing—users can select screw type and length based on surgical case requirements
Applications
TPLO surgery for cranial cruciate ligament rupture in medium and large dogs
Cases requiring strong load-bearing fixation and high implant stability
Veterinary orthopedic centers with a wide range of patient sizes
Advanced surgical training and hospital-grade procedures
This system offers strength, precision, and flexibility in one modular package—ideal for veterinary professionals treating larger canine patients.
Product Details

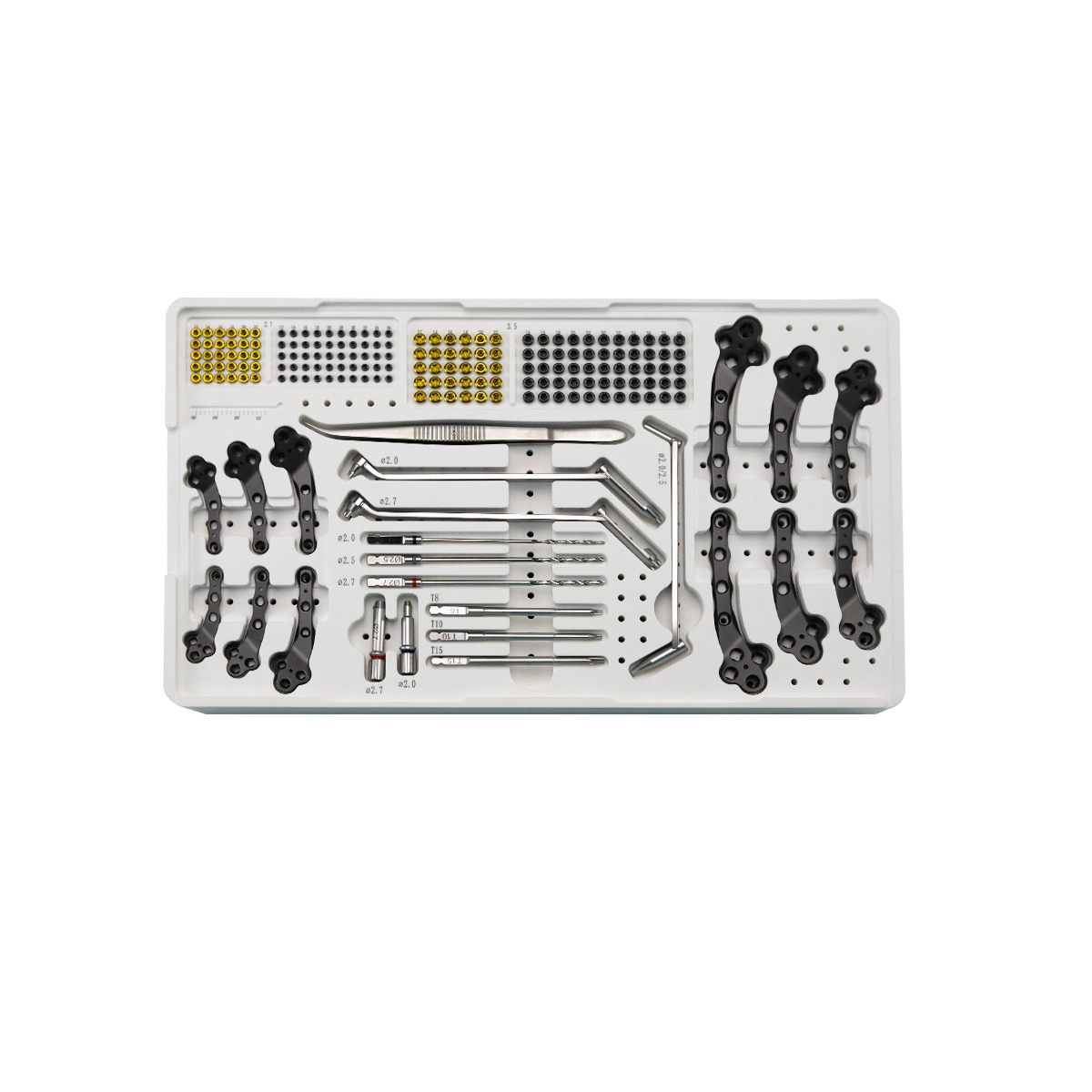

Integrated sterilization tray with ventilation lid keeps all instruments and implants organized, sterile, and surgery-ready.
Multi-size TPLO plates and golden markers ensure accurate sizing and clear layout for fast intraoperative access.
Labeled instruments with color-coded drivers and drill guides support efficient workflow and screw compatibility.
Includes AO-compatible T8/T10/T15 screwdriver bits and quick-connect handles for stable and secure fixation.
| Products | Details | |||
|
2.7/3.5 Multi-axial Locking TPLO Set (PN:CQ2735MTPLOS) |
1 | CQ27AZT | Drill Guider Φ2.7 | 1 |
| 2 | CQ25AZT | Drill Guider Φ3.5 | 1 | |
| 3 | CQ20AZT | AO Screwdriver T8 | 1 | |
| 4 | CQTYT15MB | AO Screwdriver T15 | 1 | |
| 5 | CQTYT15MB | Compression Drill Guide Φ2.5-Φ3.5 | 1 | |
| 6 | CQ2735TO1824SDZ | Compression Drill Guide Φ2.0-Φ2.7 | 1 | |
| 7 | CQ2735TO1520SDZ | QC Drill Bit Φ2.7* 175 | 1 | |
| 8 | CQ2735TO27DZ | QC Drill Bit Φ2.5* 110 | ||
| 9 | CQ2735TO35DZ | QC Drill Bit Φ2.0* 110 | 1 | |
| 10 | CQ2735TO16LKSZ | Guide Pin Φ1.6/Φ2.0 | 2 | |
| 11 | CQ2735TO45100B | Rod Φ4.5* 150 | 2 | |
| 12 | CQ2735TOLSW2535 | Hex Wrench SW2.5/3.5 | 1 | |
| 13 | CQ2735TO60CSC | Depth Gague 60mm | 1 | |
| 14 | CQ2735TOAOKSB | AO QC Handle | 1 | |
| 15 | CQTY15NLJT | Torque Wrench 1.5N.m . | ||
| 16 | CQTY04NLJT | Torque Limiter 0.4N.m . | 1 | |
| 17 | CQ2735TOYDQL | TPLO Guider Large | 1 | |
| 18 | CQ2735TOCLC | Angler | 1 | |
| 19 | CQ2735TOMJHL | One-piece Sterilization Box | 1 | |
| 20 | 000000010 | Cortical Screw 2.7*8-18mm | 30 | |
| 21 | 000000011 | Locking Screw 2.7* 10-20mm | 30 | |
| 22 | CPMT27S33R | 2.7 TPLO 6# Right | 1 | |
| 23 | CPMT27M33R | 2.7 TPLO 7# Right | 1 | |
| 24 | CPMT27L33R | 2.7 TPLO 8# Right | 1 | |
| 25 | CPMT27S33L | 2.7 TPLO 6# Left | 1 | |
| 26 | CPMT27M33L | 2.7 TPLO 7# Left | 1 | |
| 27 | CPMT27L33L | 2.7 TPLO 8# Left | 1 | |
| 28 | 000000012 | Cotical Screw 3.5*12- 18mm | 30 | |
| 29 | 000000013 | Locking Screw 3.5*8- 12mm | 30 | |
| 30 | CPMT35S33R | 3.5 TPLO 9# Right | 1 | |
| 31 | CPMT35M33R | 3.5 TPLO 10# Right | 1 | |
| 32 | CPMT35L44R | 3.5 TPLO 10# L Right | 1 | |
| 33 | CPMT35S33L | 3.5 TPLO 9# Left | 1 | |
| 34 | CPMT35M33L | 3.5 TPLO 10# Left | 1 | |
| 35 | CPMT35L44L | 3.5 TPLO 10# L Left | 1 | |
Product Photograph
