2.4mm ALPS (Advanced Locking Plate System) Instrument Set for Small to Medium Animal Fracture Fixation
Product Overview
2.4mm ALPS Set | Veterinary Titanium Bone Plate and Screw System
This 2.4mm ALPS Set is designed for small animal fracture fixation, offering a comprehensive solution with locking plates, screws, drill sleeves, and essential tools. Made from medical-grade titanium, it ensures lightweight durability and biocompatibility for dogs, cats, and other small animals.
Key Features
✔ Includes multiple locking plate types such as T-type, L-type, and supracondylar plates to meet various surgical needs
✔ Titanium screws are available in both locking and cortical styles with precise sizing from 2.410 to 2.420
✔ Color-coded instruments and sleeves provide quick identification and efficient surgical workflow
✔ All components are housed in a durable sterilization box with molded slots for secure and organized storage
Applications
Fracture repair in long bones of small animals
Distal femur or humerus reconstruction
Tibial or radial metaphyseal fractures
Comprehensive orthopedic surgeries requiring locking fixation
A complete solution for veterinary internal fixation procedures
Product Details
Supports multiple drill bit sizes such as 1.6 and 1.1, with laser markings and color rings for fast identification.
Locking screws are neatly organized and color-anodized, offering a complete range for varied fracture fixation.
Offers various hole configurations and plate shapes like T-type and condylar plates for optimized fit and stability.
Equipped with full 2.4mm locking screws and long plates, ideal for routine long bone fracture stabilization.
| Products | Details | |||
| 2.4mm ALPS Set (PN:CQ24ALPS) |
1 | CQ5AS16AZT | φ1.6 Drill Bit | 1 |
| 2 | CQ5AS11SDZ | φ1.1 Locking Drill Sleeve | 1 | |
| 3 | CQ5AS16DBDZ | φ1.6 Hand-hold Drill Sleeve | 1 | |
| 4 | CQTYT6MB | T6 Screwdriver | 1 | |
| 5 | CQ5AS11AZT | φ1.1 Drill Bit | 1 | |
| 6 | CQTYLDN | Screw Holder Forceps | 1 | |
| 7 | CPA2443 | 2.4 ALPS Locking Plate 5mm 43H | 1 | |
| 8 | CPA2434 | 2.4 ALPS Locking Plate 6.5mm 34H | 1 | |
| 9 | CPTTL2425M | 2.4mm T-Type Locking Plate2+5-6.5*48 | 2 | |
| 10 | CPTTL2425 | 2.4mm T-Type Locking Plate2+5-5*38 | 1 | |
| 11 | CPTTL2435 | 2.4mm T-Type Locking Plate3+5-5*39 | 1 | |
| 12 | CPLTL2434L | Supracondylar Locking Plate 1.8*5.0*42 L | 1 | |
| 13 | CPLTL2434R | Supracondylar Locking Plate 1.8*5.0*42 R | 1 | |
| 14 | CPLTL2434LM | Supracondylar Locking Plate 2.2*6.5*53 L | 1 | |
| 15 | CPLTL2434RM | Supracondylar Locking Plate 2.2*6.5*53 R | 1 | |
| 16 | CPLTL24310L | 2.4mm L-Type Locking Plate 3+10H L | 1 | |
| 17 | CPLTL24310R | 2.4mm L-Type Locking Plate 3+10H R | 1 | |
| 18 | CSCF1510 | Cortical Screw 1.5*10 | 5 | |
| 19 | CSCF1512 | Cortical Screw 1.5*12 | 5 | |
| 20 | CSCF1514 | Cortical Screw 1.5*14 | 5 | |
| 21 | CSCF1516 | Cortical Screw 1.5*16 | 5 | |
| 22 | CSCF1518 | Cortical Screw 1.5*18 | 5 | |
| 23 | CSCF1520 | Cortical Screw 1.5*20 | 5 | |
| 24 | CSS2410 | Locking Screw 2.4*10 | 5 | |
| 25 | CSS2412 | Locking Screw 2.4*12 | 5 | |
| 26 | CSS2414 | Locking Screw 2.4*14 | 5 | |
| 27 | CSS2416 | Locking Screw 2.4*16 | 5 | |
| 28 | CSS2418 | Locking Screw 2.4*18 | 5 | |
| 29 | CSS2420 | Locking Screw 2.4*20 | 5 | |
| 30 | CQ5ASMJH | HPP+PPSU Sterilization Box 269*138*30 | 1 | |

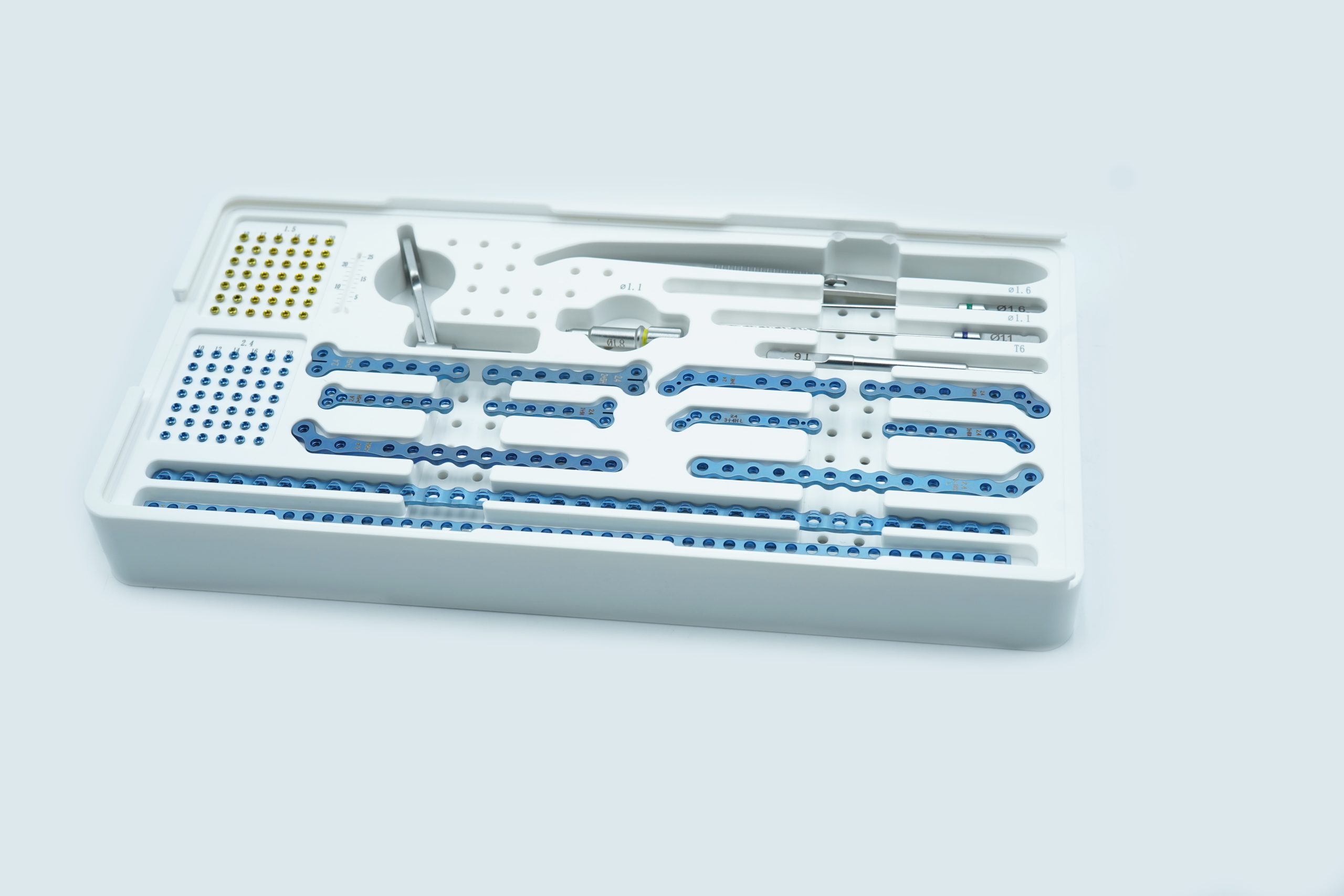

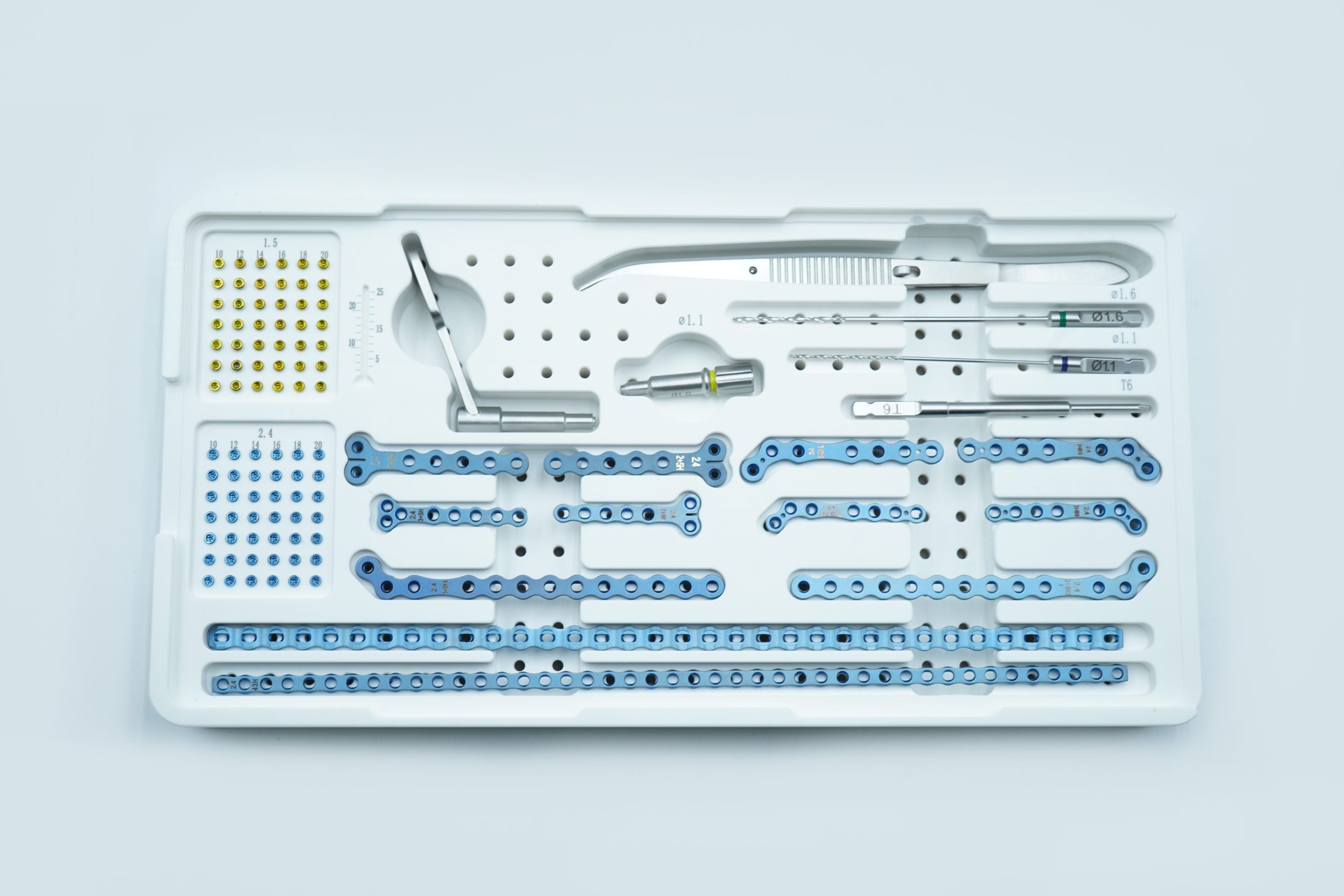

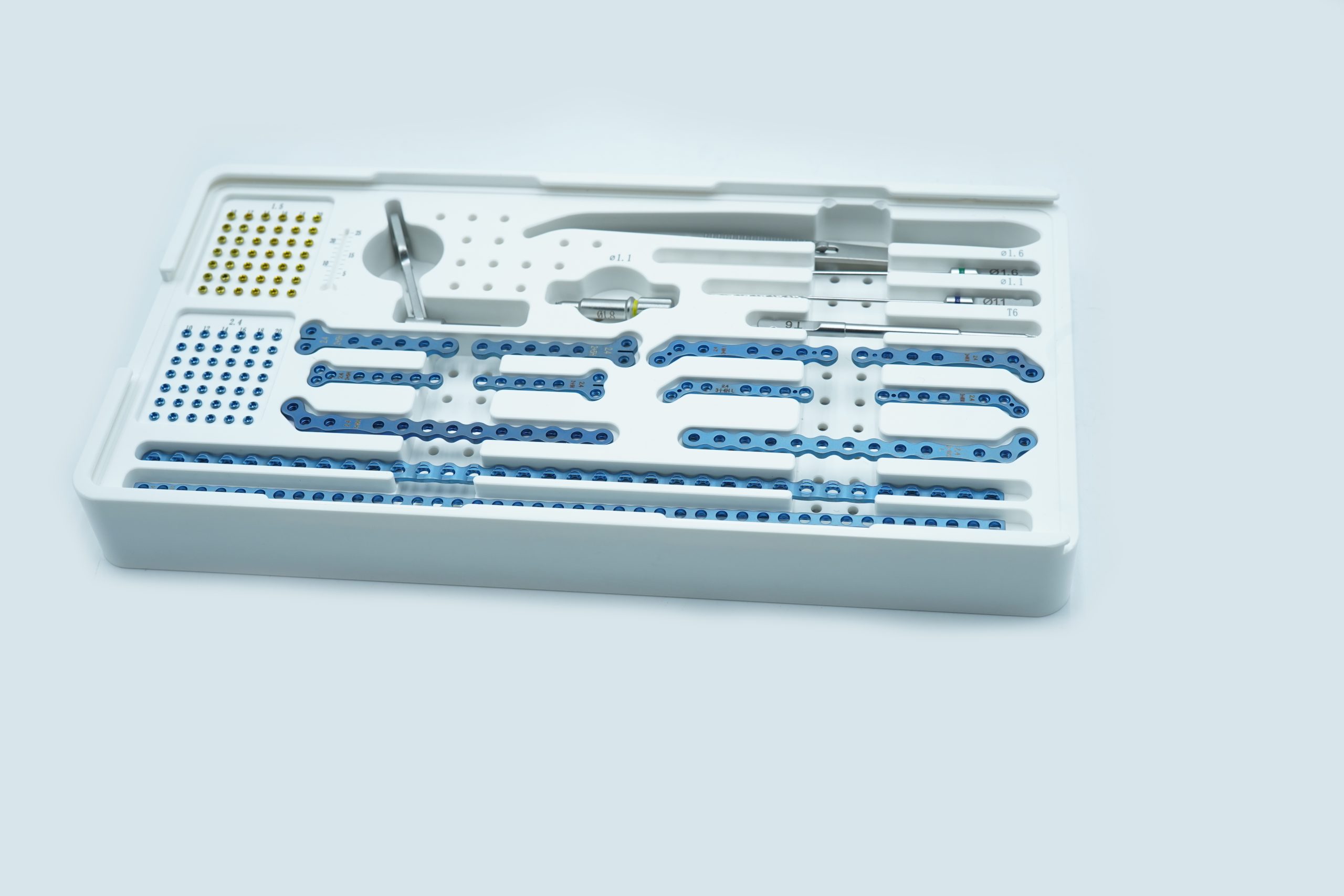

Product Photograph
