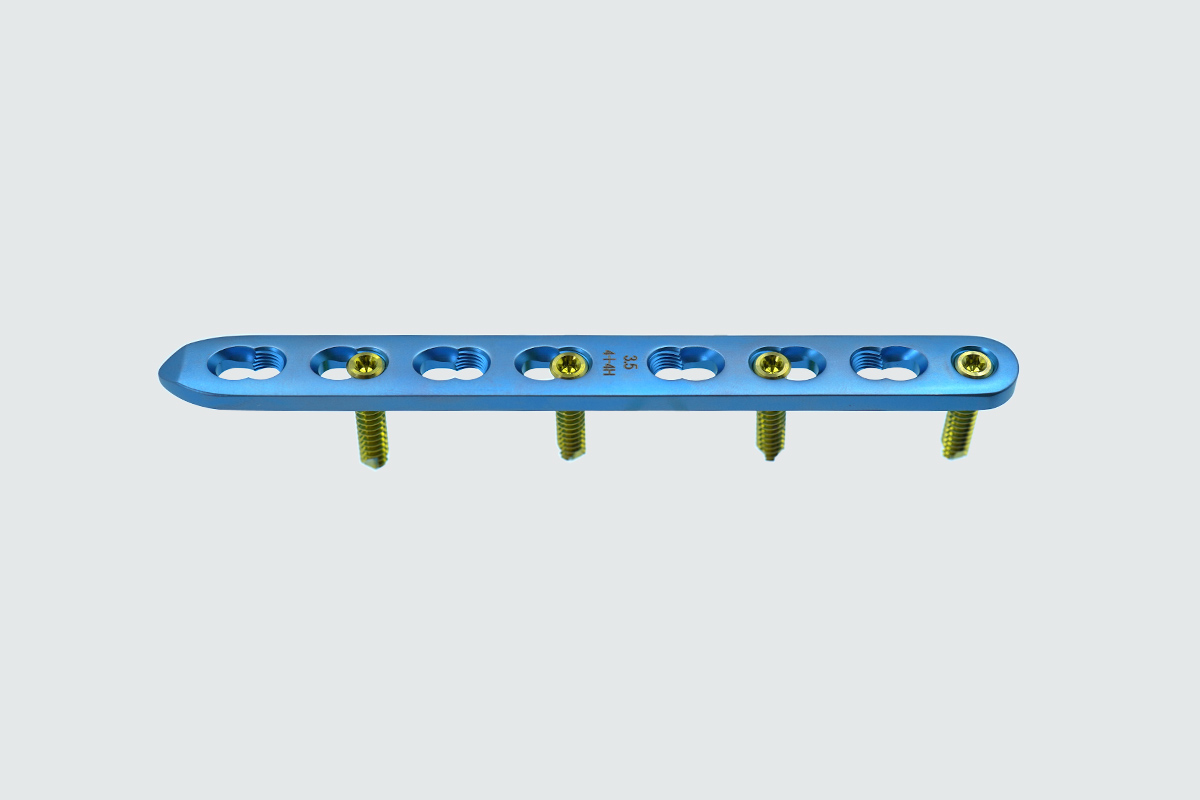

2.0mm Titanium Straight Locking Compression Plate (LCP) for Long Bone Fracture Fixation in Small Animals
Product Overview
2.0mm Straight LCP Locking Plate | Veterinary Titanium Compression Plate
The 2.0mm Straight LCP Locking Plate is designed for veterinary orthopedic fixation of small animals. Compatible with 2.0mm locking and cortical screws, it offers versatile application for long bone fracture repair. Available in both titanium and stainless steel, this plate ensures strong fixation, high biocompatibility, and minimal tissue irritation.
Key Features
✔ Locking & compression hybrid design – supports both locking and non-locking screws
✔ Anatomical low-profile shape – reduces soft tissue irritation after implantation
✔ High-grade titanium or stainless steel – corrosion-resistant and biocompatible
✔ Multiple length configurations (2+2 to 6+6 holes) – flexible for different fracture needs
Applications
-
Fracture repair of radius, ulna, tibia, and fibula in cats, small dogs, or exotic animals
-
Ideal for straight bone alignment and minimally invasive fixation
-
Compatible with AO HC2.0 & HA2.0 screw systems
This plate is a reliable option for veterinarians seeking strong, versatile, and easy-to-implant bone fixation for small animal orthopedic cases.
Product Details
Available in multiple hole configurations to accommodate various fracture patterns and surgical needs.
Precision-threaded combination holes ensure reliable locking or compression based on surgical preference.
Secure fixation with locking screws minimizes micro-motion and enhances post-op stability.
Color-coded titanium plates for quick identification and efficient surgical preparation.
| REF No. | Products | Specification | Material | Size (mm) | Remark |
| CPLCP2022 | 2.0mm Straight LCP | 2+2 holes | Ti S.S. |
30*5.5* 1.8 | AO HC2.0 HA2.0 |
| CPLCP2023 | 2+3 holes | 37*5.5* 1.8 | |||
| CPLCP2033 | 3+3 holes | 44*5.5* 1.8 | |||
| CPLCP2034 | 3+4 holes | 51*5.5* 1.8 | |||
| CPLCP2044 | 4+4 holes | 58*5.5* 1.8 | |||
| CPLCP2045 | 4+5 holes | 65*5.5* 1.8 | |||
| CPLCP2055 | 5+5 holes | 72*5.5* 1.8 | |||
| CPLCP2056 | 5+6 holes | 79*5.5* 1.8 | |||
| CPLCP2066 | 6+6 holes | 86*5.5* 1.8 |
Related Products
1.5mm AO Locking Screw

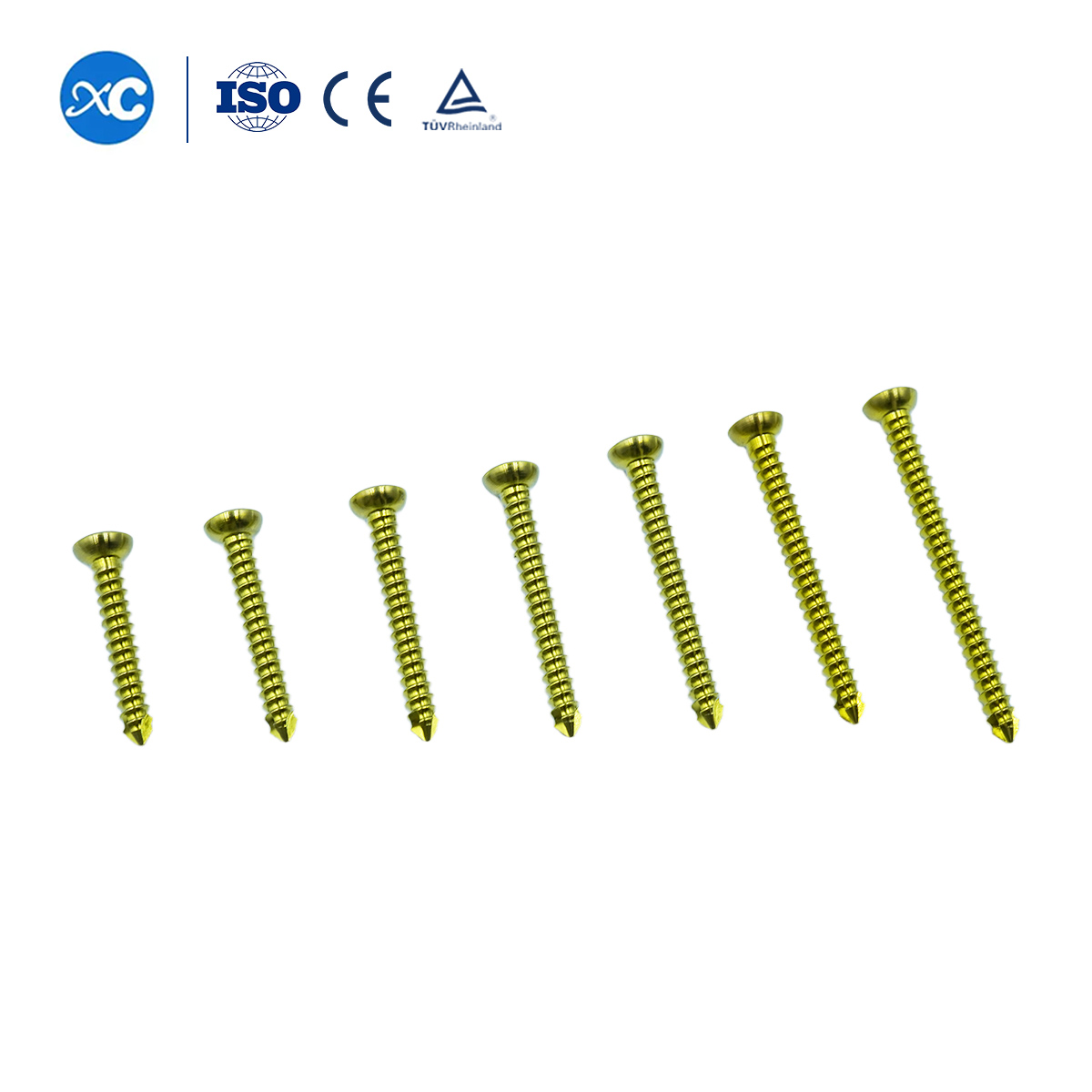

2.0mm Cortical Self-Tapping Screw
